DIN 3090/EN 13411-1 Wire Rope Thimble

Item No.: 604004

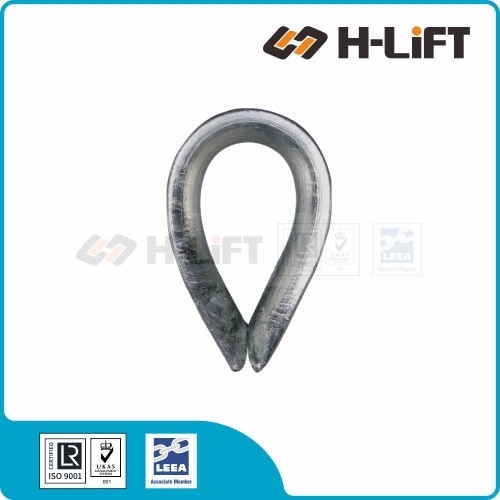

DIN 3090/EN13411-1 wire rope thimble
Thimbles are used to protect the eyes of cable, and rope slings from abrasion by providing a solid steel barrier between the fragile cable strands and the other rigging fitting used in the connection.
Description
Description

DIN 3090 wire rope thimbles are widely used components in lifting and rigging applications, designed to protect the wire rope from abrasion and wear.

Specifications

  • Material: Typically made from mild steel, DIN 3090 thimbles may have various finishes depending on the size. Smaller diameters (4 mm and 6 mm) are often electro-galvanized, while larger sizes (8 mm and above) are usually hot-dipped galvanized for enhanced corrosion resistance
  • Standard Compliance: These thimbles conform to the DIN 3090 standard, which outlines their design and performance requirements. They are also compatible with EN 13411-1, which is the broader European standard for lifting equipment

Features

  • Finish Options: The finish varies based on the diameter of the thimble; smaller sizes are electro-galvanized while larger ones are hot-dipped galvanized to ensure durability in various environments

Applications

DIN 3090 thimbles are used in:

  • Lifting Operations: They provide a secure loop for wire ropes, enhancing safety and efficiency.
  • Rigging: Commonly utilized in construction, shipping, and other industries where heavy lifting is required.
  • End Terminations: Suitable for creating terminations in wire rope slings.


DIN 3090/EN 13411-1 wire rope thimble

Wire rope thimbles, cable thimbles or wire thimbles, are used to support wire rope eyes by creating a durable wear surface when connected to mating rigging hardware.
Wire rope thimbles are used to protect the eyes of cable, and rope slings from abrasion by providing a solid steel barrier between the fragile cable strands and the other rigging fitting used in the connection.

Material: mild steel

Finish: Electro galvanized or hot dip galvanized

Standard: EN 13411-1
DIN 3090 replaced by EN 13411-1

 DIN 3090 heavy duty wire rope thimble

Item No. Rope Diameter Dimensions(mm) Weight Product Code
A B C D E F kg
WRTDC06 6mm 16 30 10.5 30 48 7 0.02 604004006
WRTDC08 8mm 20 42 13.5 41 65 9 0.07 604004008
WRTDC10 10mm 27 53 15 50 80 12 0.13 604004010
WRTDC12 12mm 30 53 17 52 90 13 0.20 604004012
WRTDC14 14mm 36 67.5 22 69 105 16 0.26 604004014
WRTDC16 16mm 42 79 24 85 125 18 0.34 604004016
WRTDC18 18mm 47 85 28 94 143 20 0.50 604004018
WRTDC20 20mm 53 92 30 100 150 22 0.68 604004020
WRTDC22 22mm 57 106 33 112 165 24 0.87 604004022
WRTDC24 24mm 62 110 35 125 178 26 0.99 604004024
WRTDC26 26mm 68 123 43 133 200 29 1.58 604004026
WRTDC28 28mm 70 128 44 140 215 32 2.00 604004028
WRTDC32 32mm 82 145 48 162 233 35 2.42 604004032
WRTDC36 36mm 94 165 54 180 277 39 3.60 604004036
WRTDC40 40mm 103 200 60 200 322 44 6.40 604004040
WRTDC44 44mm 114 222 64 225 346 50 8.00 604004044
