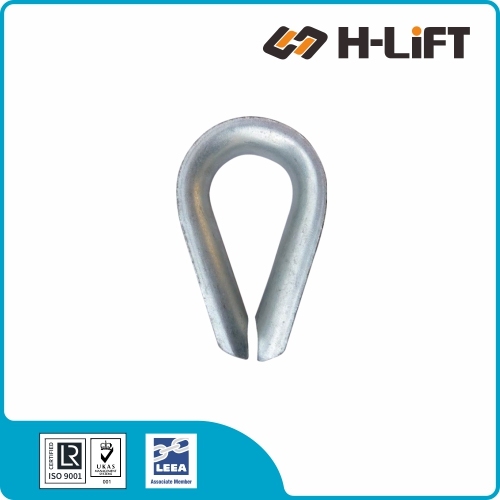

DIN 6899 A type Wire Rope Thimble

No.604007

The H-Lift DIN 6899 A Wire Rope Thimble is a standard-duty reinforcement accessory designed to protect wire rope loops from abrasive wear and structural deformation. Ideally suited for light to medium-load rigging applications, it ensures the terminal eye maintains its shape and integrity while connecting to shackles, hooks, or turnbuckles.

  • Manufactured generally to DIN 6899 Type A specifications
  • Available in a wide range of sizes from 2.5mm to 28mm
  • Provides essential protection against cable crushing and friction
  • Electro-galvanized or hot-dip galvanized finish for corrosion resistance
  • Suitable for general-purpose rigging, lashing, and suspension tasks

Technical Data

The DIN 6899 Type A Thimble is a cost-effective, commercial-grade reinforcement for wire rope and fiber rope eyes. Featuring a rounded shape and wider groove opening, it is ideal for general-purpose lashing, static lines, and light towing applications where heavy load-bearing is not critical.

🇩🇪 DIN 6899 Form A

Manufactured generally to DIN 6899 A specifications. Provides a consistent standard for commercial rigging needs.

⚙️ Commercial Grade

Made from Mild Steel (High Tensile Carbon Steel). Features a thinner wall thickness and more rounded shape compared to heavy-duty models, reducing weight.

🛡️ Corrosion Protection

Finished with an Electro-Galvanized (Zinc Plated) coating to provide reliable protection against rust in standard indoor and outdoor environments.

🔗 Versatile Use

Size range from 2.5mm to 28mm. Ideal for fiber rope terminations, light wire rope static lines, and general lashing.

Q: What is the main use for DIN 6899 A thimbles? A: Type A thimbles are designed for light-duty applications. They are frequently used with fiber ropes or small diameter wire ropes for static lines and general commercial rigging.
Q: How does Type A differ from Type B? A: Type A is lighter with thinner walls and a wider, rounder opening. Type B is heavy-duty with thicker walls, a deeper groove, and a heart-shaped design for critical lifting applications.
ℹ️ Related Products:
• For heavy-duty rigging, check our DIN 6899 Type B Thimbles.
• Secure your rope eye with our Aluminum Ferrules or Wire Rope Clips.

Technical Specifications

DIN 6899 A type Wire Rope Thimble

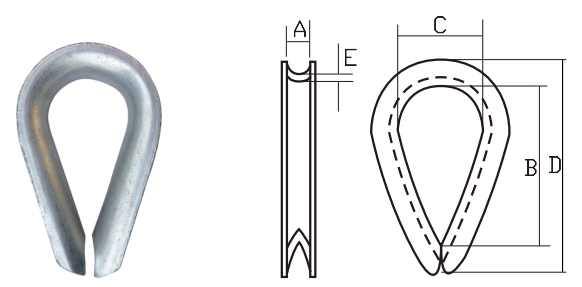

A=Groove Width | B=Inside Length | C=Inside Width | D=Length | E=Back Thickness
← Swipe table left and right to view all data →
Item No. Size Dimensions (mm) Weight
(kg)
Product Code
A B C D E
WRTDA002 2.5mm 3 21.5 10 28 1 0.0038 604007002
WRTDA003 3mm 3 23 11 30 1 0.0038 604007003
WRTDA004 4mm 4 26.5 12.5 34 1 0.0045 604007004
WRTDA005 5mm 5 29 13 37 1 0.0064 604007005
WRTDA006 6mm 6 29.5 14 39 1 0.0077 604007006
WRTDA007 7mm 7 33 15 44 1.2 0.0122 604007007
WRTDA008 8mm 8 35 17 46.5 1.2 0.0135 604007008
WRTDA009 9mm 10 37.5 18 50 1.2 0.0175 604007009
WRTDA010 10mm 10.9 43 20 61 1.5 0.0265 604007010
WRTDA011 11mm 11 47.5 23 62.5 1.5 0.031 604007011
WRTDA012 12mm 12.5 52.5 24 68 1.5 0.034 604007012
WRTDA013 13mm 13 57 26.5 75 2 0.058 604007013
WRTDA014 14mm 14 64 28 80.5 2 0.073 604007014
WRTDA015 16mm 16 67 32 91 2.5 0.10 604007016
WRTDA018 18mm 18.5 71 36 100.5 3 0.16 604007018
WRTDA020 20mm 20 80 41 113 3.5 0.21 604007020
WRTDA022 22mm 23 89.5 44 125 4 0.36 604007022
WRTDA024 24mm 24 100 50 135 4 0.38 604007024
WRTDA028 28mm 29 112 58.5 157 5 0.62 604007028
