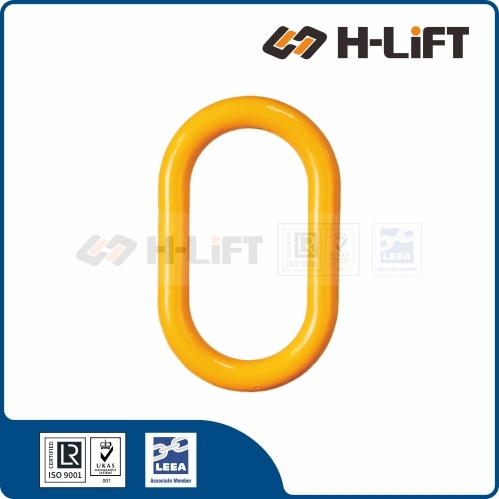

H-Lift Grade 80 US Type Forged Master Link MLK Type
- Grade 80 master link for 1-leg or 2-leg lifting chain sling.
- Master link: link forming the upper terminal of a sling by means of which the sling is attached to the hook of a crane or other lifting machine.
- Standard: ASTM A952
- Material: Alloy steel - quenched and tempered
- Surface finish: Powder coated
- Proof load: 2 times the Working Load Limit
- Safety factor: 4:1
- Engineered flat for use with omega link.
| Item No. |
Chain Size |
WLL/T |
Main Dimensions(mm) |
Weight |
Product Code |
| inch |
1 leg |
2 legs(0-45°) |
Rope |
A |
B |
D |
kg |
| 8-MLK-13 |
1/4 |
1.5 |
2.12 |
3.4 |
127 |
63.5 |
13 |
0.36 |
502046013 |
| 5/16 |
2 |
2.8 |
| 8-MLK-16 |
5/16 |
2 |
2.8 |
4 |
152 |
76 |
16 |
0.7 |
502046016 |
| 3/8 |
3.15 |
/ |
| 8-MLK-19 |
3/8 |
3.15 |
4.25 |
5.6 |
140 |
70 |
19 |
0.93 |
502046019 |
| 8-MLK-22 |
3/8 |
3.15 |
4.25 |
6.9 |
160 |
90 |
22 |
1.5 |
502046022 |
| 1/2 |
5.3 |
/ |
| 8-MLK-25 |
1/2 |
5.3 |
7.5 |
11.8 |
178 |
89 |
25 |
2.1 |
502046025 |
| 5/8 |
8 |
11.2 |
| 8-MLK-32 |
5/8 |
8 |
11.2 |
17.7 |
222 |
111 |
32 |
4.24 |
502046032 |
| 3/4 |
11.2 |
16 |
| 8-MLK-38 |
3/4 |
11.2 |
16 |
27.7 |
267 |
135 |
38 |
7.17 |
502046038 |
| 7/8 |
15 |
21.2 |
| 8-MLK-44 |
7/8 |
15 |
21.2 |
38.5 |
305 |
152 |
45 |
11.55 |
502046044 |
| 1 |
21.2 |
/ |
| 8-MLK-51 |
1 |
21.2 |
30 |
46.5 |
355 |
178 |
51 |
17.2 |
502046051 |
| 1-1/4 |
31.5 |
/ |
| 8-MLK-57 |
1-1/4 |
31.5 |
45 |
64.9 |
406 |
203 |
57 |
24.5 |
502046057 |
| 8-MLK-63 |
/ |
/ |
/ |
72.6 |
406 |
203 |
63.5 |
30.9 |
502046063 |
| 8-MLK-70 |
/ |
/ |
/ |
98.4 |
406 |
241 |
70 |
39.5 |
502046070 |
| 8-MLK-76 |
/ |
/ |
/ |
103 |
457 |
228 |
76 |
50.34 |
502046076 |
| 8-MLK-82 |
/ |
/ |
/ |
119 |
508 |
254 |
82.5 |
65.68 |
502046082 |
| 8-MLK-89 |
/ |
/ |
/ |
126 |
610 |
305 |
89 |
90.24 |
502046089 |
| 8-MLK-95 |
/ |
/ |
/ |
152 |
508 |
254 |
95 |
89.27 |
502046095 |
| 8-MLK-101 |
/ |
/ |
/ |
169 |
508 |
254 |
102 |
103.43 |
502046101 |
| 8-MLK-108 |
/ |
/ |
/ |
176 |
610 |
305 |
108 |
137 |
502046108 |
| 8-MLK-115 |
/ |
/ |
/ |
184 |
710 |
355 |
115 |
178 |
502046115 |
| 8-MLK-120 |
/ |
/ |
/ |
206 |
710 |
355 |
120 |
196 |
502046120 |
| 8-MLK-127 |
/ |
/ |
/ |
226 |
760 |
380 |
127 |
234 |
502046127 |
