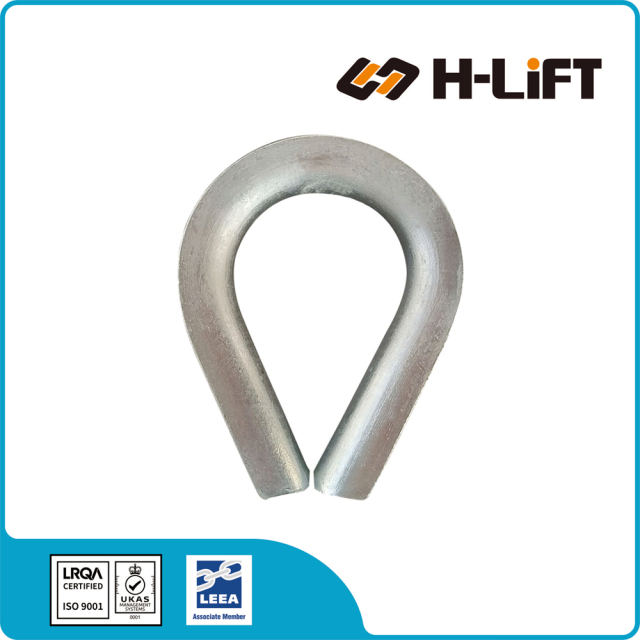

The H-Lift K2 Heavy Duty Stub-end Thimble is a rugged wire rope fitting designed with a shorter, open profile to provide reliable cable eye protection while allowing easier attachment to specialized connectors.
The K2 Heavy Duty Stub-End Thimble is specifically engineered for high-stress industrial and maritime rigging. Manufactured from forged high-tensile steel, it provides exceptional structural integrity and prevents wire rope eyes from collapsing under extreme tension. Its unique "Stub-End" geometry offers a shorter profile, making it the ideal choice for connecting wire rope slings to large-diameter anchor points and shackles.
The K2 series is engineered for the most demanding environments. It provides significantly higher resistance to deformation than standard commercial thimbles, ensuring a stable eye loop even under peak dynamic loads.
Features a specialized open throat profile. This facilitates easier attachment to large connectors and specialized anchor points that would otherwise be restricted by traditional teardrop thimbles.
Manufactured from forged superior mild steel and hot-dip galvanized. This process creates a thick, durable zinc coating that is essential for preventing rust in severe saltwater and coastal settings.
Acts as a hardened, permanent barrier that prevents the steel wire cable from fraying or pinching when bearing against a shackle pin. This significantly extends the safe operational life of your rigging assemblies.
Refer to the table below for precise dimensional measurements.
| Item No. | Size (inch) |
Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||
| WRTK2009 | 2" | 51 | 42 | 35 | 22 | 9 | 14 | 0.068 | 604013009 |
| WRTK2011 | 2-1/2" | 64 | 50 | 45 | 30 | 11 | 16 | 0.084 | 604013011 |
| WRTK2013 | 3" | 76 | 59 | 55 | 35 | 13 | 18 | 0.150 | 604013013 |
| WRTK2015 | 3-1/2" | 89 | 73 | 65 | 45 | 15 | 20 | 0.230 | 604013015 |
| WRTK2017 | 4" | 102 | 75 | 75 | 50 | 17 | 22 | 0.250 | 604013017 |
| WRTK2019 | 4-1/2" | 115 | 85 | 85 | 53 | 19 | 25 | 0.390 | 604013019 |
| WRTK2021 | 5" | 127 | 100 | 90 | 60 | 21 | 29 | 0.630 | 604013021 |
| WRTK2023 | 5-1/2" | 140 | 110 | 105 | 65 | 23 | 32 | 0.800 | 604013023 |
| WRTK2025 | 6" | 152 | 115 | 114 | 70 | 25 | 34 | 0.980 | 604013025 |
| WRTK2029 | 7" | 178 | 135 | 135 | 80 | 30 | 38 | 1.450 | 604013029 |
| WRTK2033 | 8" | 203 | 155 | 160 | 100 | 33 | 43 | 1.740 | 604013033 |
| WRTK2038 | 9" | 229 | 175 | 185 | 115 | 38 | 47 | 2.520 | 604013038 |
| WRTK2041 | 10" | 254 | 190 | 195 | 120 | 41 | 52 | 3.320 | 604013041 |
| WRTK2046 | 11" | 280 | 210 | 215 | 130 | 46 | 60 | 5.500 | 604013046 |
| WRTK2052 | 12" | 305 | 225 | 240 | 140 | 52 | 65 | 8.100 | 604013052 |
| WRTK2056 | 14" | 356 | 240 | 250 | 150 | 56 | 72 | 9.700 | 604013056 |
| WRTK2070 | 17" | 432 | 290 | 340 | 180 | 72 | 88 | 17.43 | 604013070 |
| WRTK2080 | 19" | 483 | 330 | 390 | 220 | 82 | 122 | 27.50 | 604013080 |
| WRTK2092 | 22" | 559 | 375 | 460 | 240 | 92 | 132 | 34.50 | 604013092 |
| WRTK2105 | 24" | 610 | 410 | 500 | 250 | 105 | 145 | 46.00 | 604013105 |
| WRTK2130 | 26" | 660 | 450 | 540 | 280 | 130 | 170 | 55.50 | 604013130 |
