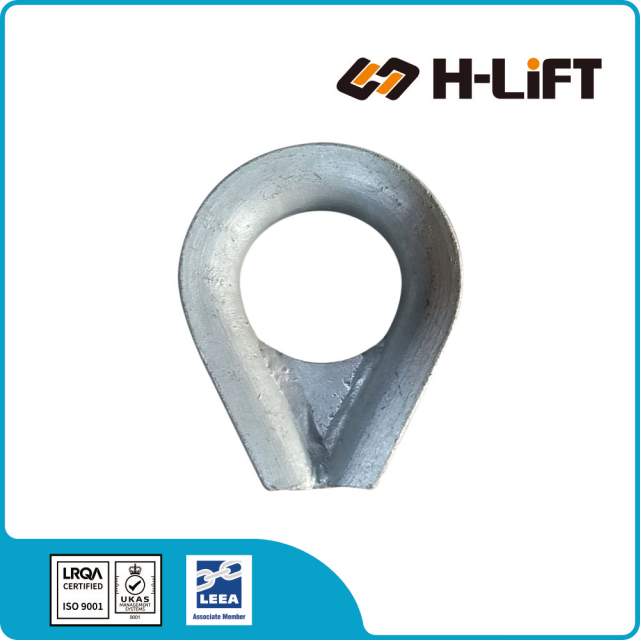

K2-B Heavy Duty Stub-end Thimble with Gusset

Name: K2-B Heavy Duty Stub-end Thimble with Gusset
Brand: H-Lift Industries Co Ltd
SKU: 604014
Availability: InStock
Rating: 5 (1 reviews)

No.604014

The K2-B model features a reinforced design with a gusset, which enhances its strength and durability. This reinforcement helps prevent the wire rope from being crushed, making it more suitable for high-load applications.

Specification

K2-B Thimble: The K2-B model features a reinforced design with a gusset, which enhances its strength and durability. This reinforcement helps prevent the wire rope from being crushed, making it more suitable for high-load applications.

Applications
K2-B Thimble: Ideal for more rigorous applications, particularly where additional strength is necessary, such as in construction and marine environments.

In summary, the K2-B thimble is designed for enhanced performance under load due to its reinforced structure, making it a better choice for high-stress applications compared to the standard K2 thimble.

K2-B heavy duty stud-end thimble with gusset

Item No.	Size	Dimensions(mm)							Weight	Product Code
Item No.	Size	A	B	C	D	E	G	F	kg	Product Code
WRTKB019	4-1/2″	115	85	50	53	19	5	25	0.53	604014019
WRTKB021	5″	127	100	60	60	21	5	29	0.8	604014021
WRTKB023	5-1/2″	140	110	60	65	23	5	32	0.9	604014023
WRTKB025	6″	152	115	70	70	25	10	34	1.11	604014025
WRTKB029	7″	178	135	75	80	30	10	38	1.55	604014029
WRTKB033	8″	203	155	80	100	33	10	43	2.5	604014033
WRTKB038	9″	229	175	110	115	38	10	47	2.75	604014038
WRTKB041	10″	254	190	120	120	41	16	52	3.8	604014041
WRTKB046	11″	280	210	130	130	46	16	60	6.1	604014046
WRTKB052	12″	305	225	140	140	52	16	65	8.9	604014052
WRTKB056	14″	356	240	150	150	56	20	72	11.1	604014056
WRTKB070	17″	432	290	185	180	72	20	88	19.8	604014070
WRTKB080	19″	483	330	225	220	82	20	122	30.6	604014080
WRTKB092	22″	559	375	280	240	92	20	132	39	604014092
WRTKB105	24″	610	410	280	250	105	25	145	51	604014105
WRTKB130	26″	660	450	280	280	130	30	170	63.5	604014130
