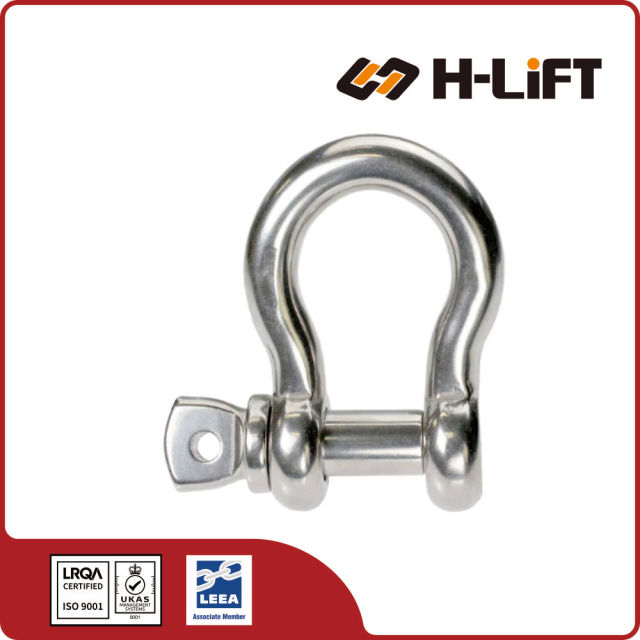

The H-Lift Stainless Steel JIS Type Bow Shackle is a reliable, rounded "O" shaped connecting link manufactured to Japanese Industrial Standards, designed for multi-directional lifting and rigging applications.
The Stainless Steel JIS Type Bow Shackle (also known as an Anchor Shackle) is manufactured to meet the rigorous specifications of Japanese Industrial Standard JIS B 2801. Its rounded O-shape body is designed to accommodate wider straps and safely handle multi-directional loads, making it an essential component for marine anchoring, sailing, and industrial lashing.
Built to strictly adhere to JIS B 2801 standards, ensuring reliable dimensional tolerances and load ratings for global industrial and maritime markets.
The O-shaped body allows for greater flexibility. It can safely handle loads from multiple directions and accommodate multiple sling legs without the risks associated with side-loading Dee shackles.
AISI 316 (Marine-Grade): Exceptional resistance to chlorides and pitting, ideal for offshore use.
AISI 304: High-strength, corrosion-resistant option for inland industrial and outdoor projects.
Equipped with a precision-threaded screw pin for quick, secure, and tool-free manual assembly. Perfect for applications requiring frequent connection and disconnection.
| Item No. | Size (mm) | WLL (kg) | I.L. (mm) | N.W. (kg) | Product Code |
|---|---|---|---|---|---|
| S-BS004 | 4 | 90 | 14 | 0.013 | 704129004 |
| S-BS005 | 5 | 100 | 18 | 0.015 | 704129005 |
| S-BS006 | 6 | 150 | 21 | 0.027 | 704129006 |
| S-BS008 | 8 | 250 | 28 | 0.061 | 704129008 |
| S-BS010 | 10 | 500 | 35 | 0.107 | 704129010 |
| S-BS012 | 12 | 600 | 46 | 0.210 | 704129012 |
| S-BS016 | 16 | 1100 | 56 | 0.460 | 704129016 |
| S-BS020 | 20 | 1600 | 70 | 0.900 | 704129020 |
| S-BS022 | 22 | 2500 | 77 | 1.260 | 704129022 |
| S-BS025 | 25 | 3000 | 88 | 1.780 | 704129025 |
| S-BS028 | 28 | 3500 | 98 | 2.650 | 704129028 |
| S-BS032 | 32 | 4500 | 114 | 3.900 | 704129032 |
