H-Lift Tube Thimble, Tube Thimble with Gusset, Stainless Steel Tube Thimble

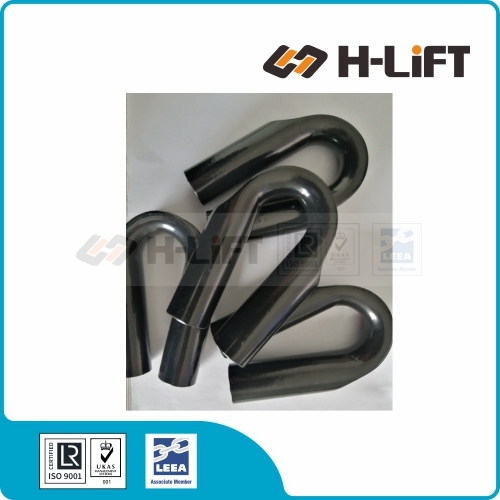

The tube thimbles are heavy duty and usable for wire rope and synthetic rope, the tube thimbles can be supplied in self colour, electric galvanized, hot dip galvanized or painted.
Tube thimbles are much stronger than standard thimbles and offer much better protection for the eye of rope. The added gusset makes this tube thimble even stronger and prevents the eye from crushing under load.

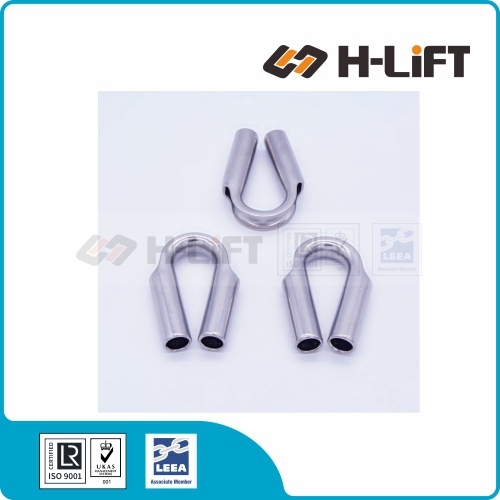

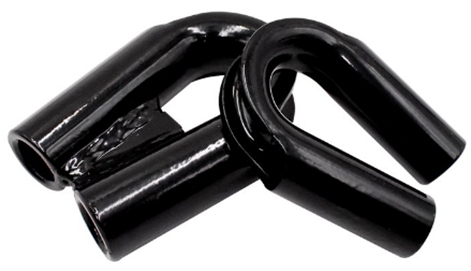

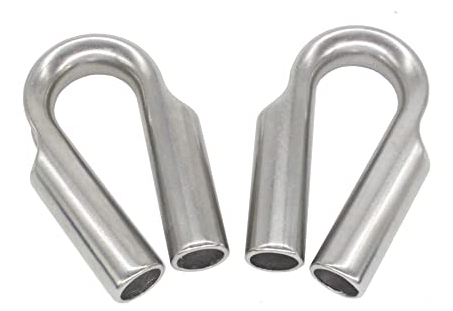

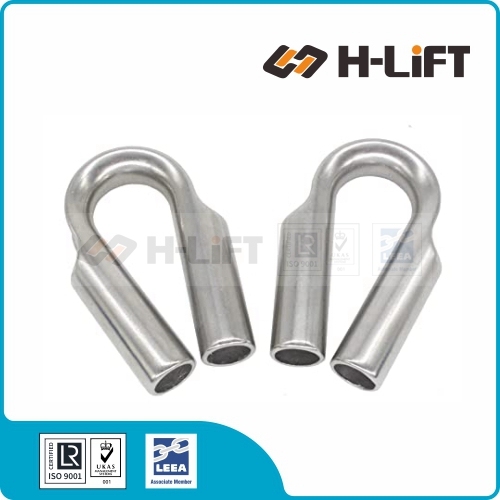

Tube thimble with welded gusset and stainless steel tube thimble available upon request.

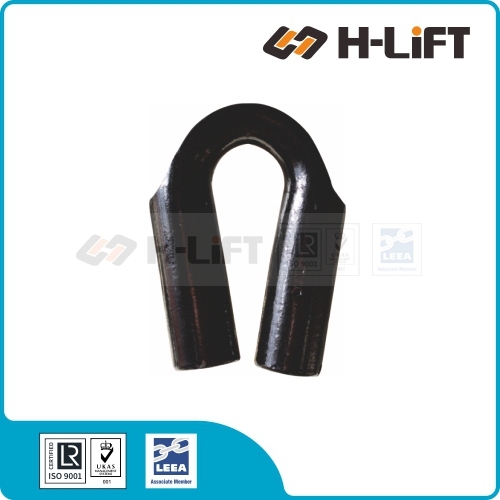

Tube Thimble
| Item No. |
For wire
Max.(mm) |
Dimensions(mm) |
Weight |
Product Code |
| A |
B |
C |
D |
E |
kg |
| WRTTT712 |
10 |
12 |
84 |
23 |
4 |
8 |
0.24 |
604006712 |
| WRTTT715 |
12 |
15 |
95 |
27 |
5 |
8 |
0.40 |
604006715 |
| WRTTT717 |
14 |
17 |
100 |
27 |
5 |
8.5 |
0.45 |
604006717 |
| WRTTT719 |
16 |
19 |
112 |
32 |
5 |
12 |
0.59 |
604006719 |
| WRTTT722 |
18 |
22 |
125 |
35 |
5 |
13 |
0.70 |
604006722 |
| WRTTT725 |
22 |
25 |
150 |
45 |
6 |
15 |
1.23 |
604006725 |
| WRTTT728 |
24 |
28 |
157 |
45 |
7 |
16 |
1.63 |
604006728 |
| WRTTT730 |
25 |
30 |
170 |
47 |
7 |
18 |
1.91 |
604006730 |
| WRTTT735 |
32 |
35 |
190 |
60 |
7 |
21 |
2.43 |
604006735 |
| WRTTT740 |
36 |
40 |
212 |
70 |
7 |
25 |
3.01 |
604006740 |
| WRTTT745 |
38 |
45 |
228 |
70 |
7 |
26 |
3.60 |
604006745 |
| WRTTT750 |
42 |
50 |
255 |
75 |
7 |
28 |
4.45 |
604006750 |
| WRTTT755 |
48 |
55 |
268 |
80 |
7 |
31 |
5.38 |
604006755 |

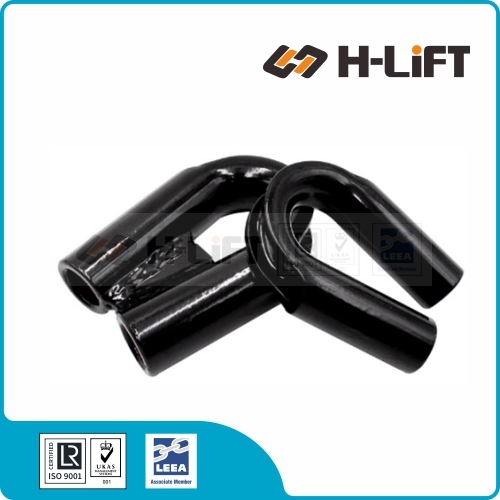

Tube Thimble with Welding Gusset
| Item No. |
For wire
Max.(mm) |
Dimensions(mm) |
Weight |
Product Code |
| A |
B |
C |
D |
E |
F |
kg |
| WRTTG712 |
10 |
12 |
84 |
23 |
4 |
8 |
28 |
0.28 |
604009712 |
| WRTTG715 |
12 |
15 |
95 |
27 |
5 |
8 |
32 |
0.46 |
604009715 |
| WRTTG717 |
14 |
17 |
100 |
27 |
5 |
8.5 |
32 |
0.52 |
604009717 |
| WRTTG719 |
16 |
19 |
112 |
32 |
5 |
12 |
37 |
0.68 |
604009719 |
| WRTTG722 |
18 |
22 |
125 |
35 |
5 |
13 |
40 |
0.81 |
604009722 |
| WRTTG725 |
22 |
25 |
150 |
45 |
6 |
15 |
50 |
1.41 |
604009725 |
| WRTTG728 |
24 |
28 |
157 |
45 |
7 |
16 |
50 |
1.87 |
604009728 |
| WRTTG730 |
25 |
30 |
170 |
47 |
7 |
18 |
52 |
2.2 |
604009730 |
| WRTTG735 |
32 |
35 |
190 |
60 |
7 |
21 |
65 |
2.79 |
604009735 |
| WRTTG740 |
36 |
40 |
212 |
70 |
7 |
25 |
75 |
3.46 |
604009740 |
| WRTTG745 |
38 |
45 |
228 |
70 |
7 |
26 |
75 |
4.14 |
604009745 |
| WRTTG750 |
42 |
50 |
255 |
75 |
7 |
28 |
80 |
5.12 |
604009750 |
| WRTTG755 |
48 |
55 |
268 |
80 |
7 |
31 |
85 |
6.19 |
604009755 |
