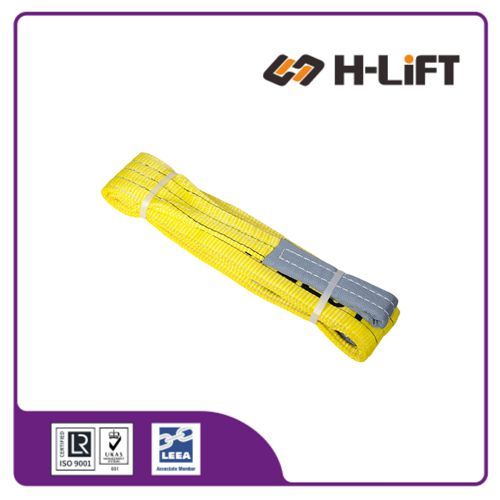

The Flat Woven Webbing Sling to EN 1492-1 is a highly reliable textile lifting device engineered for general-purpose load handling, fully certified to strict European safety standards.
Flat Duplex webbing slings engineered for professional heavy lifting. Featuring reinforced soft eyes and PU-impregnated high-tenacity polyester, these slings provide a lightweight yet incredibly strong alternative to chains, ensuring maximum cargo surface protection.

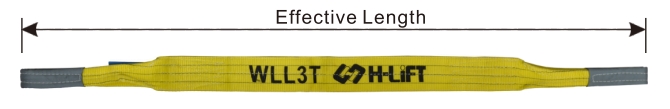

Measure from bearing point to bearing point when the sling is laid flat.
Integrated RFID chips allow for digitized safety logs and rapid inventory audits.
| Item No. | Color Code (EN 1492-1) |
Width (mm) |
Working Load Limits (Tonnes) by Hitch Type | Product Code | ||||
|---|---|---|---|---|---|---|---|---|
| Vertical | Choked | Basket Hitch (Angle β) | ||||||
 M=1 |
 M=0.8 |
 M=2 |
 M=1.4 |
 M=1 |
||||
| WS01-03001 |

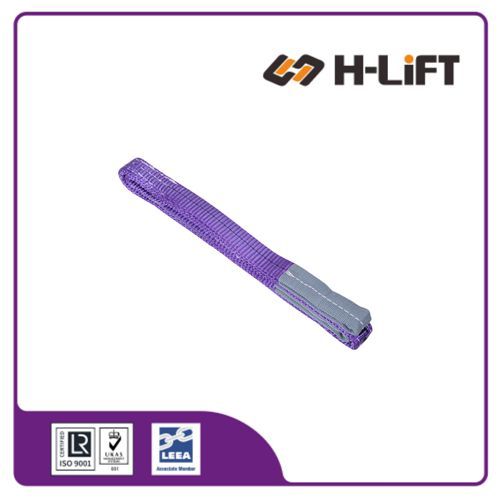

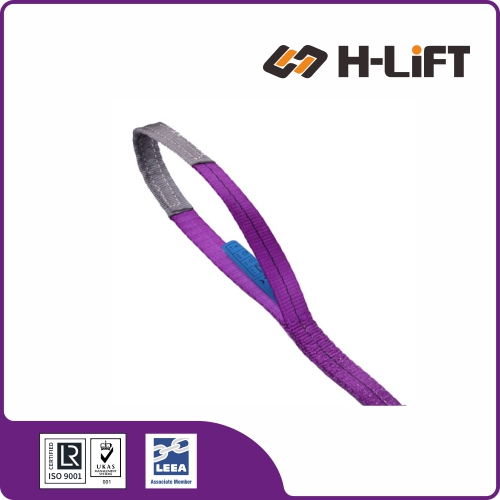

1T (Purple)
|
30 / 50 | 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 301003001 |
| WS01-06002 |

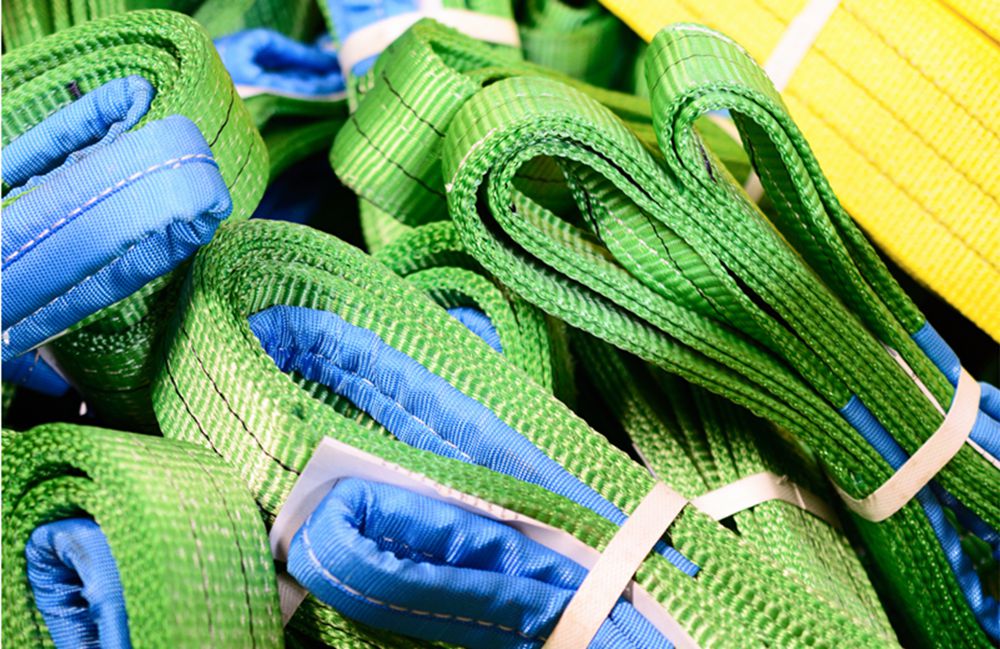

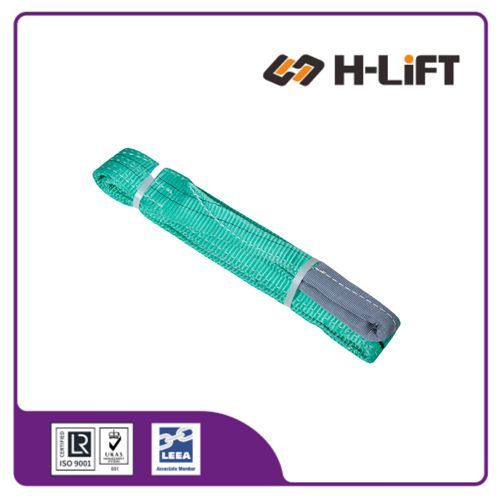

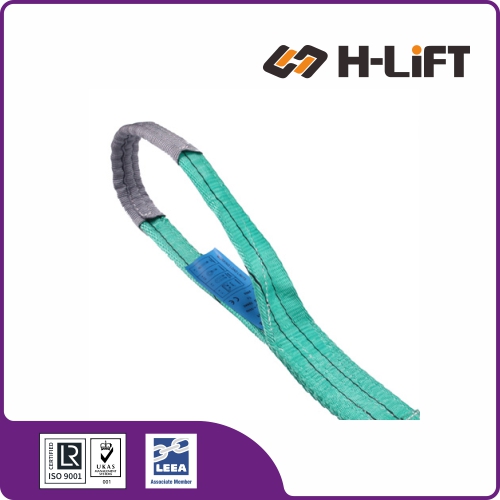

2T (Green)
|
60 | 2.0 | 1.6 | 4.0 | 2.8 | 2.0 | 301006002 |
| WS01-09003 |

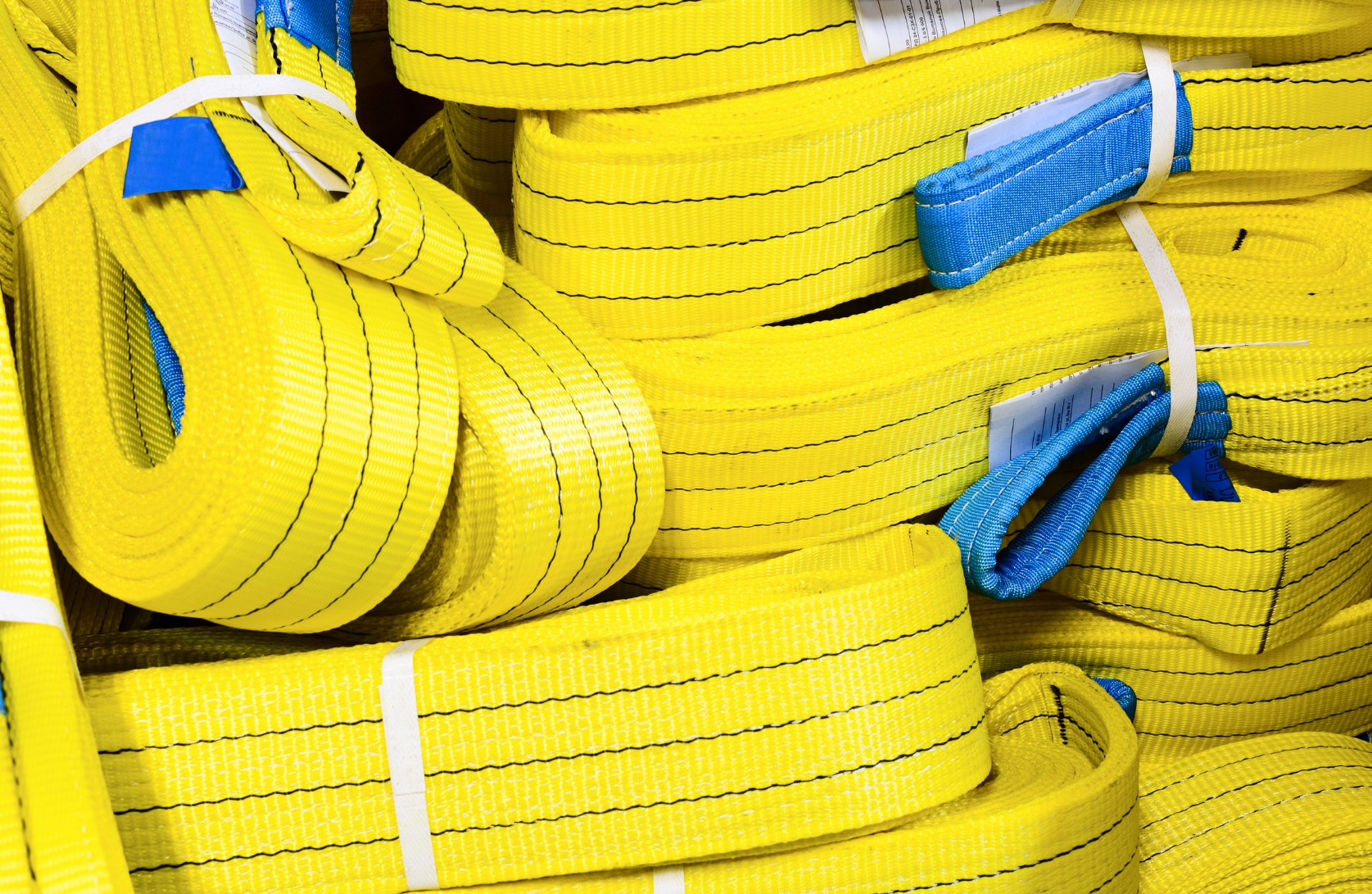

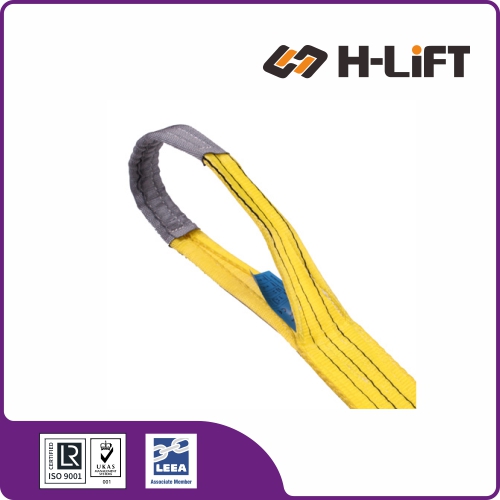

3T (Yellow)
|
90 | 3.0 | 2.4 | 6.0 | 4.2 | 3.0 | 301009003 |
| WS01-12004 |

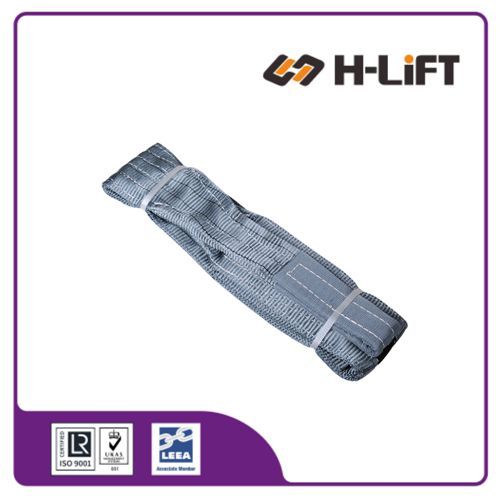

4T (Grey)
|
120 | 4.0 | 3.2 | 8.0 | 5.6 | 4.0 | 301012004 |
| WS01-15005 |

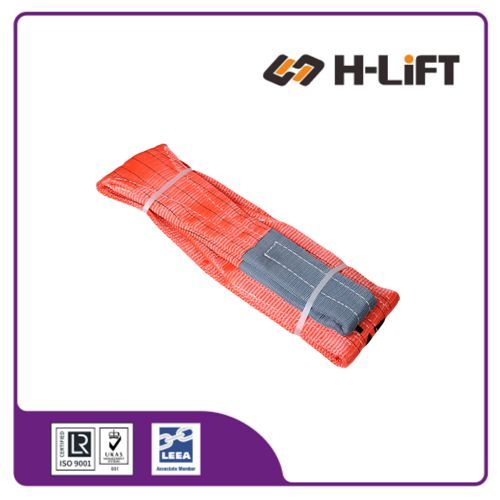

5T (Red)
|
150 | 5.0 | 4.0 | 10.0 | 7.0 | 5.0 | 301015005 |
| WS01-18006 |

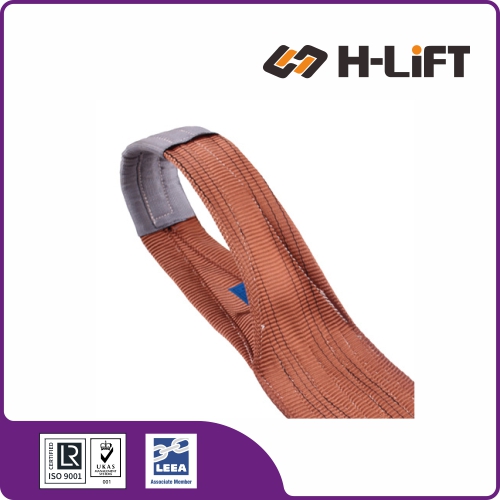

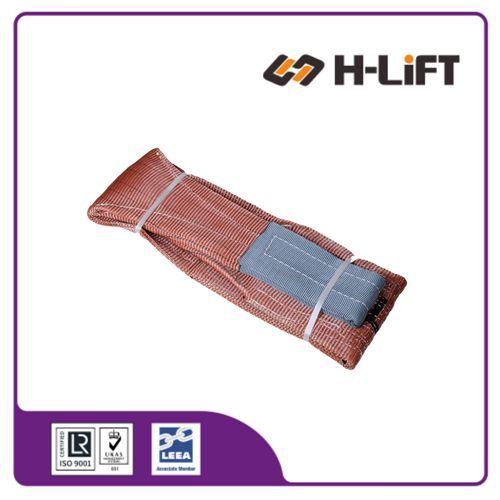

6T (Brown)
|
180 | 6.0 | 4.8 | 12.0 | 8.4 | 6.0 | 301018006 |
| WS01-24008 |

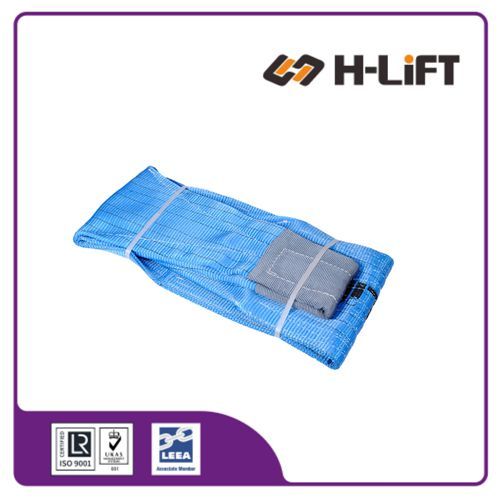

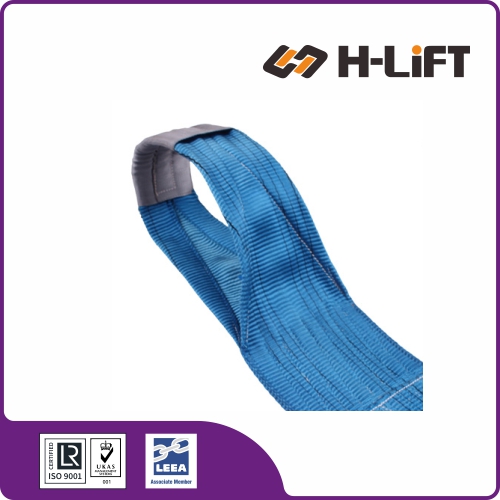

8T (Blue)
|
240 | 8.0 | 6.4 | 16.0 | 11.2 | 8.0 | 301024008 |
| WS01-30010 |

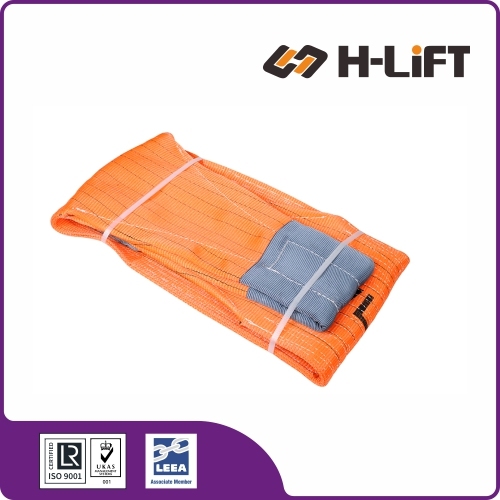

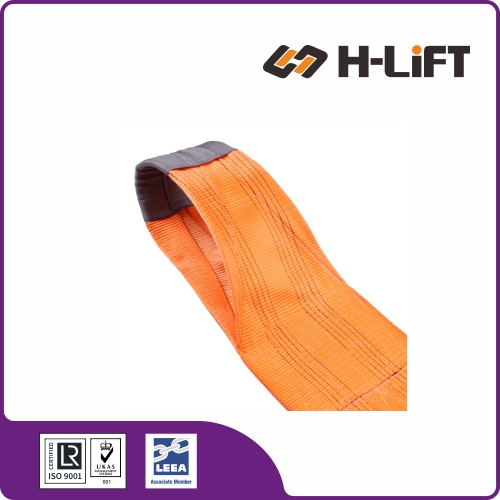

10T (Orange)
|
300 | 10.0 | 8.0 | 20.0 | 14.0 | 10.0 | 301030010 |
| WS01-30012 |
12T (Orange)
|
300 | 12.0 | 9.6 | 24.0 | 16.8 | 12.0 | 301030012 |
* M (Mode Factor): Multiply the Vertical WLL by M to determine safe capacity for specific hitch configurations.

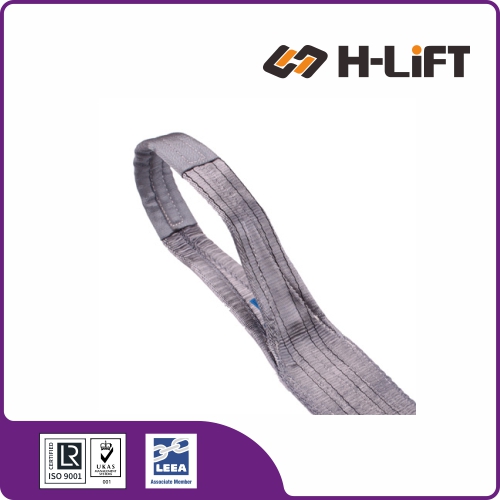

Q: What is the benefit of the reinforced eye?
A: Reinforced eyes are designed with extra protective sleeves to resist abrasion where the sling contacts the crane hook or anchor point, significantly increasing the operational life of the sling.
Q: Can these slings be used to lift chemicals?
A: 100% Polyester (PES) is highly resistant to most mineral acids but can be damaged by alkalis. Always consult our technical team for specific chemical compatibility before use.
Identify the material by the color of the label. Different materials have different chemical resistances and temperature ranges.
| Material | Label Color | Chemical Resistance | Temperature Range |
|---|---|---|---|
| Polyester (PES) | BLUE | Resistant to moderate acids. Damaged by Alkalis. |
-40ºC to 100ºC |
| Polyamide (Nylon) | GREEN | Immune to Alkalis. Damaged by Acids. |
-40ºC to 100ºC |
| Polypropylene | BROWN | Unaffected by Acids/Alkalis. Damaged by Solvents/Paints. |
-40ºC to 80ºC |
Inspect before each use. Refer to a Competent Person if you see:
