Mechanical Rack Jack RJ Type

Item No.: 802001

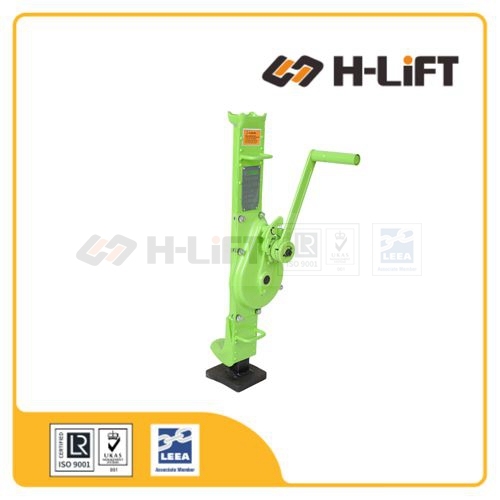

H-Lift Mechanical Rack Jacks also known as Steel Jacks comes with spur gear and robust steel housing. The full load can be applied to head or toe and is operated using the crank handle.
The Mechanical Toe Jacks have a back and forth action on the handle.
Description Safe Use of Jacks
Description

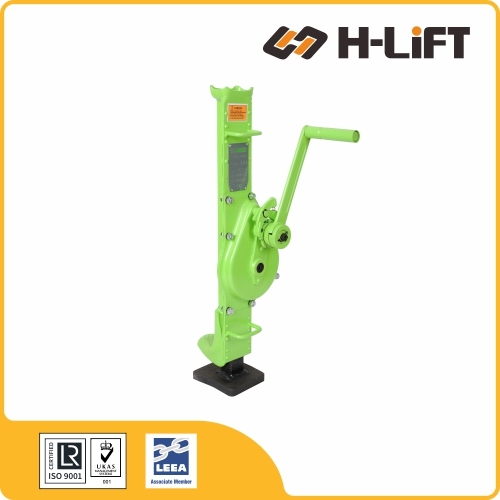

H-Lift Mechanical Rack Jack RJ Type:
The Mechanical Rack Jacks have a back and forth action on the handle to allow them to be operated in confined spaces.

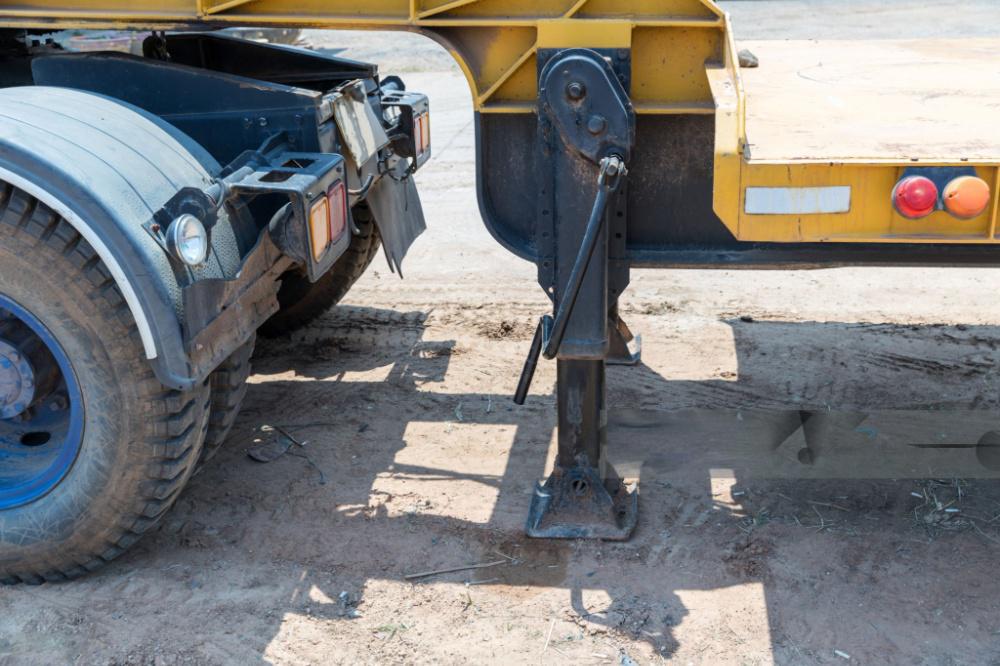

RJ type is an array of rack and pinion jacks that is constructed in a sturdy steel framework. These mechanical equipment can accommodate load capacities of 1.5t upto 20t. They exhibit versatile functionality as they can be used vertically and horizontally. Through the use of crank with foldable handle, it can lift and lower loads with optimum load capacity on the head or toe. In addition, it integrates a safety system with dual catches.



  • Mechanical jack for working in vertical or horizontal position.
  • Crank with folding handle, back and forth action on the handle.
  • Supporting parts are extra hardened.
  • Two safety pawls for controlled descent.
  • With safety locking mechanism.
  • Tested with 25% overload.
  • Load Capacity 100% on the head or toe for RJ015 to RJ100.
  • Load Capacity on the toe is 70% of the WLL for RJ160 and RJ200.

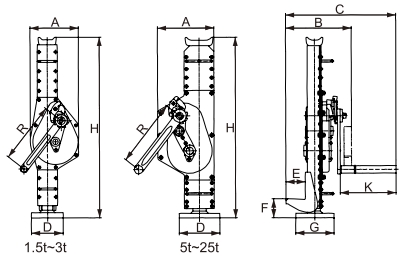

Model Capacity Proof Load Effort Required to Lift Rated Load   Stroke  Min. Lifting Height (mm) Dimensions (mm)   N.W. Product Code
t kN N mm F H A B C D E G K R kg
RJ015 1.5 18.4 150 300 60 600 163 190 273 100 55 110 113 225 13.5 802001015
RJ030 3 36.8 280 350 70 730 197 200 296 130 60 140 127 250 21.2 802001030
RJ050 5 61.3 280 350 80 730 189 239 335 140 71 170 127 275 28.5 802001050
RJ100 10 122.5 560 410 85 800 250 293 498 140 86 170 248 300 46.8 802001100
RJ160 16 196 640 320 95 800 275 320 514 150 78 180 250 300 65 802001160
RJ200 20 245 640 320 100 860 275 335 529 150 78 180 250 380 75 802001200
Safe Use of Jacks

ALWAYS:
• Store and handle jacks correctly.
• Inspect jacks before use and before placing into storage.
• Ensure the surface on which the jack is placed is level, even and capable of taking the imposed loads.
• Ensure the load is capable of withstanding the forces imposed by the jacking operation.
• Use packing capable of withstanding the imposed loads without crushing. Lift and lower in small stages using support packing to minimise load falls or the load coming onto a single jack.
• Ensure the jack is positioned so that the load is applied to the jack in the correct plane.



NEVER:
• Obliquely load jacks.
• Raise the load higher than necessary.
• Over extend the jack.
• Leave a load supported solely on jacks.
• Reach under a load supported by jacks.
• Work or climb on a load supported by jacks.



Selecting the Correct Jack
Jacks may be hydraulic or mechanical in operation and are available in a range of capacities and designs. Select the jack to be used and plan the lift taking the following into account:
Type of jack - hydraulic, ratchet, screw, journal.
Capacity, closed height, lifting height, overall dimensions.
Accessories - toe or claw attachment - screwed ram and locking collar - calibrated gauges for load/pressure measurement.
Packing to be used during the jacking operation and/or to support the load when raised.



Storing and Handling Jacks
Never return damaged jacks to storage. They should be clean and, where necessary, protected from corrosion.
Jacks should be stored upright with the ram, rack, screw or journal lowered so that it is protected from damage whilst in store.
Operating levers, handles, tommy bars etc should be removed, clearly identified and stored separately.
Jacks should be handled with care.



Using Jacks Safely
Most jacking operations require the use of multiple jacks. Care is needed as it is not possible to raise or lower jacks in perfect unison. This results in an uneven loading condition with the load being transferred from one jack to another. It can be more hazardous when lowering as the jack being lowered transfers its share to the other jacks. The capacity of the jacks should be adequate to account for this. Steps should be taken to ensure the load is kept level within the limits of operation.
The following should also be taken into account:

Do not use defective jacks or inadequate packing etc.
Ensure the floor is capable of withstanding the imposed loads. Where necessary use floor plates to spread the load over a wider area. Avoid hidden dangers such as buried cables, pipes and ducts which may affect the load bearing capability of the floor.
The surface on which the jacks is placed should be level and even allowing it to sit firmly without tilting or rocking. Use packers if necessary.
The head of the jack should be in full, firm contact with the jacking point of the load. Use packers if necessary to prevent the head of the jack from slipping. Do not obliquely load the jack.
Never raise a load higher than necessary. Special care is also necessary when lowering loads. Use a system of jacking and packing to ensure the load will not tilt or fall in the event of jack failure.
Never over extend a jack.
Never leave a load supported on jacks. Use packing, screwed collars, trestles etc which are capable of withstanding the imposed load without crushing.
Never reach under, work or climb on a load supported by jacks. Always keep hands and toes clear.



In-service Inspection and Maintenance
Jacks should be cleaned to remove any dirt or debris paying particular attention to racks, screws, the area around top ram seals etc. Hydraulic oil levels should be checked and the oil topped up or drained and replaced. Moving mechanical components should be lubricated etc. Care is necessary in the case of ratchet jacks as excessive grease can cause the holding pawl to stick or become retarded in operation allowing the rack to free fall thus dropping the load.
Regularly inspect jacks and, in the event of the following defects, refer the jack to a Competent Person for thorough examination: jack fails to lift or lower; load slips or creeps down; damaged, cracked or distorted body; base cracked, distorted or does not sit solidly on the floor; operating lever/handle bent or cracked; toe or claw attachment cracked or distorted. In the case of hydraulic jacks: oil leaks; ram scored, nicked or distorted; release valve inoperative. In the case of mechanical jacks: rack teeth or screws chipped, worn or corroded; swivel head seized.
