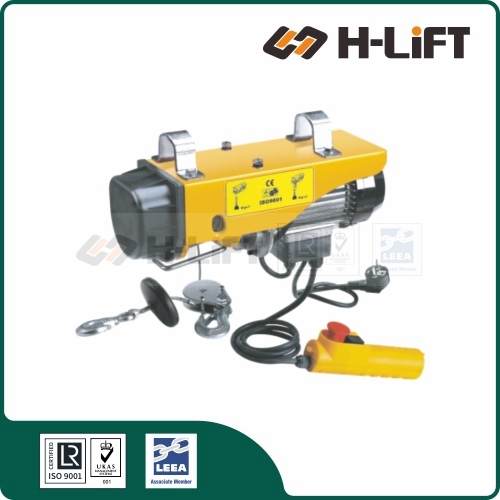

Name: Mini Electric Wire Rope Hoist EWH-E type
Brand: H-Lift Industries Co Ltd
SKU: 2502
Availability: InStock
Rating: 5 (1 reviews)

No.2502

H-Lift Mini Electric Wire Rope Hoist EWH-E type is a compact lifting device for small to medium loads up to 1000kg in workshops, warehouses, and construction sites.

Multiple Capacities: Available from 100/200kg to 500/1000kg with dual speed options.
Safety Features: Built-in limit switches, thermal protection, and emergency stop button.
IP54 Copper Motor: Dust and spray water protected with non-rotating wire rope.
CE Certified: Pendant control with optional hoist frame and remote control.

Technical Data
Features & Applications

Dual Line Capability: Use the included pulley block to double your lifting capacity instantly.

Safety First: Features automatic limit switches and an emergency stop button for secure operation.

Product Features

Certified Safety: Fully certified with CE, GS, EMC, and RoHS standards, ensuring the highest level of safety and reliability for home and industrial use.
Wide Capacity Range: Available in a complete range of capacities from 100kg up to 1000kg (Double Line), suitable for lifting engines, building materials, and workshop tools.
Dual Line Operation: Includes a pulley block to easily convert to Double Line mode, doubling the lifting capacity (e.g., a 500kg hoist lifts 1000kg).
Automatic Limit Protection: Built-in Upper and Lower Limit Switches automatically cut power when the load reaches the top or bottom, preventing cable damage and over-winding.
Motor Protection: Equipped with a high-conductivity Copper Motor and a Thermal Overload Protection device to shut down the motor if it overheats.
User-Friendly Control: Features a simple pendant control with an Emergency Stop button for immediate shutdown in hazardous situations.
Durable Cable: Supplied with Non-Rotating Wire Rope (aircraft grade) to prevent load spinning and ensure stable lifting.

Compare Mini Electric Hoist Series

Model	Primary Advantage	Speed (Single)	Mounting Style
EWH-E Type Best Value	CE/GS Certified, Standard Performance.	10 m/min	Bolt-On (Fixed)
EWH-L Type Fast Speed	Double Speed (20m/min).	20 m/min	Bolt-On (Fixed)
EWH-S Type Portable	360° Swivel Hook, Aluminium Body.	15 m/min	Hook Suspension

Technical Specifications

Item No.	Capacity (kg)		Lifting Speed (m/min)		Lifting Height (m)		Input Power (W)	Rated Voltage	Packing	Product Code
Item No.	Single	Double	Single	Double	Single	Double	Input Power (W)	Rated Voltage	Size (mm)	Product Code
EWH0200E	100	200	10	5	12	6	480	220-240V 50/60Hz	490x425x155	250200200
EWH0250E	125	250	10	5	12	6	540		490x425x155	250200250
EWH0300E	150	300	10	5	12	6	600		490x425x155	250200300
EWH0400E	200	400	10	5	12	6	950		525x480x165	250200400
EWH0500E	250	500	10	5	12	6	1020		525x480x165	250200500
EWH0600E	300	600	10	5	12	6	1200		525x480x165	250200600
EWH0800E	400	800	8	4	12	6	1300		540x505x170	250200800
EWH1000E	500	1000	8	4	12	6	1600		620x240x350	250201000

A mini electric wire rope hoist is a compact lifting device designed for handling lighter loads in various settings. Combining a lightweight structure with powerful lifting capabilities, it is the ideal solution for confined spaces in both industrial and domestic environments.

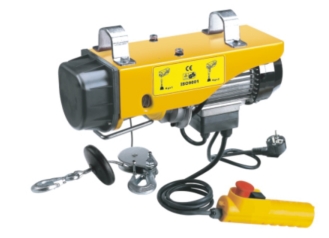

Compact Design: Illustrated above is a standard PA-style mini hoist, typically mounted on a fixed bar or swivel arm for vertical lifting.

Overview & Key Characteristics

Design & Portability: Characterized by a small footprint and lightweight structure, these hoists are easy to install and operate in confined spaces. They are often mounted on fixed structures or overhead tracks.
Lifting Capacity: Specifically tailored for lighter tasks compared to heavy industrial hoists. Capacities typically range up to 1000 kg (2200 lbs), perfect for tools, small engines, and materials.
Standard Power Supply: Operates on standard household or industrial electricity (e.g., AC 220V/230V Single Phase), drastically simplifying installation without the need for specialized 3-phase power.
Safety Features: Equipped with essential safety mechanisms, including thermal protection devices to prevent motor overheating and limit switches to ensure safe operation limits.

Main Applications

Mini electric wire rope hoists are versatile lifting devices used across various sectors due to their ease of use. Common applications include:

Workshops & Garages Ideal for lifting car engines, lightweight machinery, or heavy tools, making them essential for DIY projects and small-scale repairs.

Warehousing Commonly employed for loading and unloading goods in smaller storage areas or mezzanines, helping streamline inventory management.

Home Use Suitable for household tasks such as hoisting items into attics, lifting lawnmowers, or managing storage in personal garages.

Construction Sites Used to lift materials (cement, bricks, tools) to upper floors in tight spaces where large cranes cannot access.

Agriculture Useful for moving equipment, feed bags, or supplies within barns and farms, enhancing efficiency in daily operations.

Light Manufacturing Utilized in small factories for lifting components onto assembly lines or positioning parts during the manufacturing process.

Overall, mini electric wire rope hoists offer a practical, cost-effective solution for lifting lighter loads in confined spaces across multiple industries.
