Home > Products > All Collections > Electric Lifting Equipment > Mini Electric Wire Rope Hoist > Mini Electric Wire Rope Hoist EWH-S type

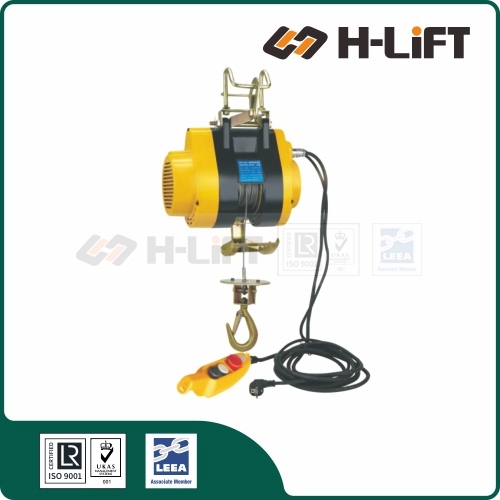

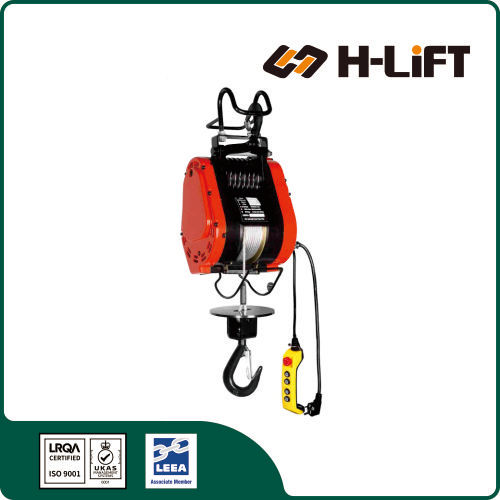

Mini Electric Wire Rope Hoist EWH-S type

Name: Mini Electric Wire Rope Hoist EWH-S type
Brand: H-Lift Industries Co Ltd
SKU: 2504
Availability: InStock
Rating: 5 (1 reviews)

No.2504

H-Lift Mini Electric Wire Rope Hoist delivers powerful lifting for construction tasks with compact design and long control cords for versatile industrial use.

Hook Mounted Design: Securely attaches to hanging structures with 360° swivel hook and safety latch.
Lightweight & Compact: Easy mounting and portability for confined workspace applications.
Standard Power Supply: Operates on common domestic voltage for universal compatibility.
Indoor Optimized: Built for indoor heavy-duty lifting, not suitable for outdoor weather exposure.

Technical Data
Features & Applications

360° Swivel Hook: Allows for instant "hang-and-go" installation on scaffolding or beams without complex bolting.

Safety Limit Switch: Automatically stops the motor to prevent over-winding and damage.

Product Features

Plug & Play Portability: Features a 360° Universal Swivel Hook on top, allowing for instant "hang-and-go" installation on scaffolding pipes or suspension beams.
Extended Lifting Height: Comes standard with a 20m lifting height, significantly longer than the standard 12m found on typical PA hoists, ideal for multi-story construction sites.
Superior Heat Dissipation: Constructed with a lightweight Aluminium Die-Cast Shell, which provides better cooling performance than steel housings, allowing for longer duty cycles.
Dynamic Safety: Equipped with Dynamic Brake designs for both static and dynamic loading, ensuring the load stops instantly and holds securely when power is cut.
User-Friendly Control: Operated via a pendant controller with an Emergency Stop button. The limit switch automatically stops the motor to prevent over-winding.
Efficient Speed: Offers lifting speeds up to 15m/min (for 100/150kg models), faster than standard mini hoists, improving workflow efficiency.

Compare Mini Hoist Mounting Styles

Model Type	Mounting Style	Lifting Height	Best Application
EWH-S Type Hook Mount	Top Swivel Hook	20m	Scaffolding, temporary sites, quick setup.
EWH-E Type (Standard) Bolt-On	Fixed Bracket (Bolts)	12m (Standard)	Permanent installation in garage or workshop.
EWH-L (Fast Speed) Fast Speed	Fixed Bracket (Bolts)	12m (Standard)	Tasks requiring double speed (20m/min).

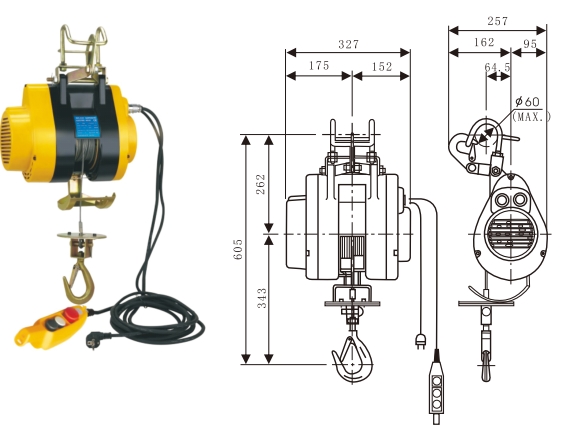

Technical Specifications

Item No.	Rated Load (kg)	Voltage / Freq	Input Power (W)	Cable Dia. (mm)	Lifting Speed (m/min)	Lifting Height (m)	G.W./N.W. (kg)	Packing Size (mm)	Product Code
EWH-S100	100	220-240V 50/60Hz	580	3.2	15	20	28/27	425x365x370	250400100
EWH-S150	150	220-240V 50/60Hz	780	3.2	15	20	28/27	425x365x370	250400150
EWH-S200	200	220-240V 50/60Hz	1050	3.2	12	20	30/29	425x365x370	250400200
EWH-S250	250	220-240V 50/60Hz	1200	3.2	12	20	30/29	425x365x370	250400250

A mini electric wire rope hoist is a compact lifting device designed for handling lighter loads in various settings. Combining a lightweight structure with powerful lifting capabilities, it is the ideal solution for confined spaces in both industrial and domestic environments.

Compact Design: Illustrated above is a standard PA-style mini hoist, typically mounted on a fixed bar or swivel arm for vertical lifting.

Overview & Key Characteristics

Design & Portability: Characterized by a small footprint and lightweight structure, these hoists are easy to install and operate in confined spaces. They are often mounted on fixed structures or overhead tracks.
Lifting Capacity: Specifically tailored for lighter tasks compared to heavy industrial hoists. Capacities typically range up to 1000 kg (2200 lbs), perfect for tools, small engines, and materials.
Standard Power Supply: Operates on standard household or industrial electricity (e.g., AC 220V/230V Single Phase), drastically simplifying installation without the need for specialized 3-phase power.
Safety Features: Equipped with essential safety mechanisms, including thermal protection devices to prevent motor overheating and limit switches to ensure safe operation limits.

Main Applications

Mini electric wire rope hoists are versatile lifting devices used across various sectors due to their ease of use. Common applications include:

Workshops & Garages Ideal for lifting car engines, lightweight machinery, or heavy tools, making them essential for DIY projects and small-scale repairs.

Warehousing Commonly employed for loading and unloading goods in smaller storage areas or mezzanines, helping streamline inventory management.

Home Use Suitable for household tasks such as hoisting items into attics, lifting lawnmowers, or managing storage in personal garages.

Construction Sites Used to lift materials (cement, bricks, tools) to upper floors in tight spaces where large cranes cannot access.

Agriculture Useful for moving equipment, feed bags, or supplies within barns and farms, enhancing efficiency in daily operations.

Light Manufacturing Utilized in small factories for lifting components onto assembly lines or positioning parts during the manufacturing process.

Overall, mini electric wire rope hoists offer a practical, cost-effective solution for lifting lighter loads in confined spaces across multiple industries.
