Non Sparking Geared Trolley, Sparkless Geared Trolley, GT-EX type

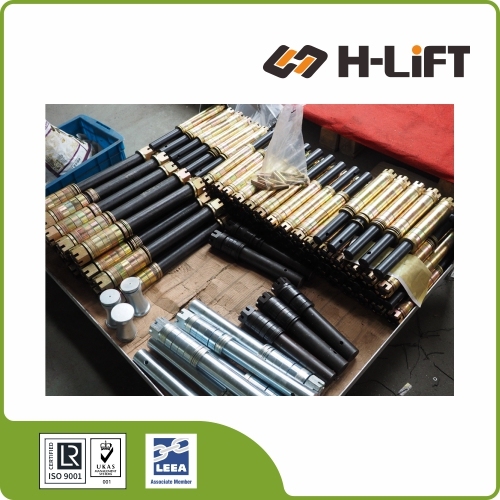

This high quality trolley range is precision engineered in W.L.L. capacities from 1 tonne to 30 tonnes. Enabling exact positioning or easy traversing of large loads incorporating manual hoists, this series geared trolley can be supplied to suit various track widths within the standard beam range(a) and the extended beam range(b).
Remark: a=standard beam range b=extended beam range
| Item No. | Capacity | Proof Load | Running Height | Min.Radius of Curve | Dimensions (mm) | Adjustable Beam Width(mm) | N.W. (kg) | Product Code | ||||||||
| A | B | C | H | S | F | M | a | b | ||||||||
| t | kN | m | m | a | b | a | b | |||||||||
| GTEX010 | 1 | 14.7 | 2.5 | 1.0 | 338 | 440 | 246 | 222 | 125 | 38 | 1.5-3 | 64-203 | 64-305 | 14.5 | 15.5 | 130801000 |
| GTEX020 | 2 | 29.4 | 1.1 | 349 | 451 | 276 | 263 | 150 | 38 | 88-203 | 88-305 | 21.5 | 23 | 130802000 | ||
| GTEX030 | 3 | 44.1 | 1.3 | 362 | 464 | 332 | 309 | 171 | 40 | 100-203 | 100-305 | 31 | 33 | 130803000 | ||
| GTEX050 | 5 | 73.5 | 1.4 | 374 | 476 | 377 | 353 | 196 | 42 | 114-203 | 114-305 | 46 | 48 | 130805000 | ||
| GTEX100 | 10 | 147 | 2.0 | 408 | 510 | 424 | 396 | 190 | 45 | 124-203 | 124-305 | 88 | 94 | 130810000 | ||
| GTEX200 | 20 | 245 | 3.5 | 498 | 600 | 555 | 498 | 233 | 58 | 136-203 | 136-305 | 165 | 174 | 130820000 | ||
| GTEX300 | 30 | 367.5 | 6.0 | / | 684 | 710 | 598 | 285 | 65 | / | 175-305 | / | 337 | 130830000 | ||
