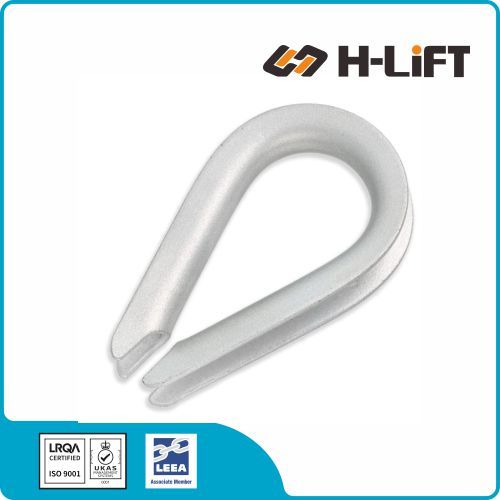

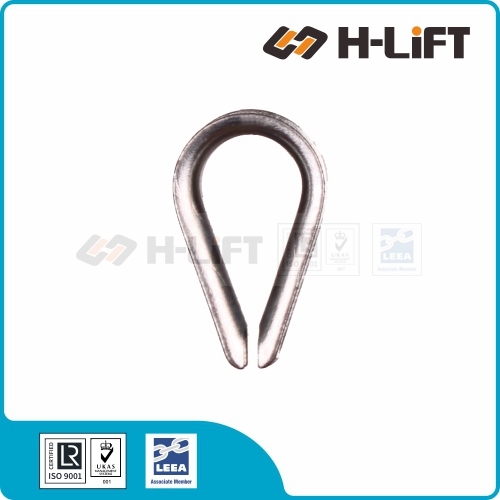

The H-Lift U.S. Type Light Duty Wire Rope Thimble (Model G-411) is an economical rigging accessory designed to shield wire rope loops from abrasive wear and distortion. It acts as a protective interface between the rope and connecting hardware, helping to maintain the integrity of the eye in general-purpose, non-critical lifting and suspension applications.
The US Type G-411 Thimble is a light-duty wire rope fitting manufactured to Federal Specification FF-T-276b Type II. Made from high-tensile carbon steel with an electro-galvanized finish, it provides essential protection for wire rope eyes in general rigging, lashing, and utility applications.
Manufactured to Federal Spec FF-T-276b Type II (G-411). Ensures consistent quality and dimensions for standard light-duty applications.
Made from High Tensile Carbon Steel. Provides a solid barrier that prevents the wire rope eye from crushing or deforming under load.
Finished with an Electro-Galvanized (Zinc Plated) coating to provide effective protection against rust and corrosion in standard environments.

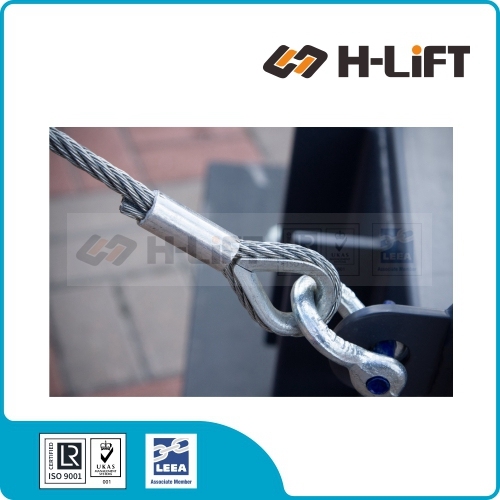

Ideal for light rigging, lashing, farming, and static lines. Protects wire rope loops from abrasion caused by shackles or hooks.

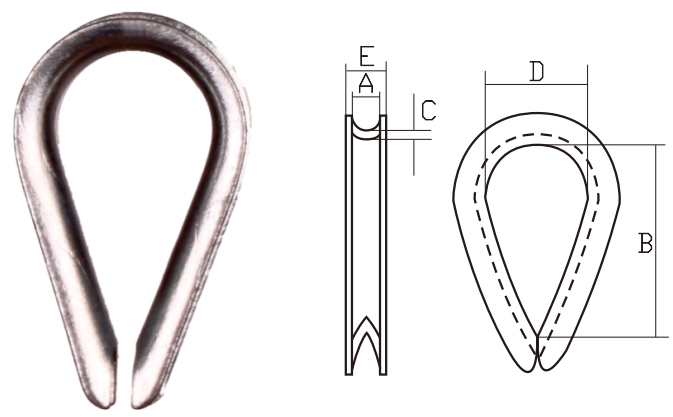

| Item No. | Size | Dimensions (inch) | Weight (kg) |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| WRTLD003 | 1/8" | 0.16 | 1.31 | 0.05 | 0.69 | 0.25 | 0.013 | 604002003 |
| WRTLD004 | 3/16" | 0.22 | 1.31 | 0.05 | 0.69 | 0.31 | 0.013 | 604002004 |
| WRTLD006 | 1/4" | 0.28 | 1.31 | 0.05 | 0.69 | 0.38 | 0.013 | 604002006 |
| WRTLD008 | 5/16" | 0.34 | 1.50 | 0.05 | 0.81 | 0.44 | 0.018 | 604002008 |
| WRTLD010 | 3/8" | 0.41 | 1.63 | 0.06 | 0.94 | 0.53 | 0.030 | 604002010 |
| WRTLD013 | 1/2" | 0.53 | 1.88 | 0.08 | 1.13 | 0.69 | 0.057 | 604002013 |
| WRTLD016 | 5/8" | 0.66 | 2.25 | 0.13 | 1.38 | 0.91 | 0.157 | 604002016 |
| WRTLD019 | 3/4" | 0.78 | 2.50 | 0.14 | 1.63 | 1.08 | 0.214 | 604002019 |
| WRTLD022 | 7/8" | 0.94 | 3.50 | 0.16 | 1.88 | 1.27 | 0.384 | 604002022 |
| WRTLD026 | 1" | 1.06 | 4.25 | 0.16 | 2.50 | 1.39 | 0.443 | 604002026 |
| WRTLD032 | 1-1/8"-1-1/4" | 1.31 | 4.50 | 0.22 | 2.75 | 1.75 | 0.794 | 604002032 |
