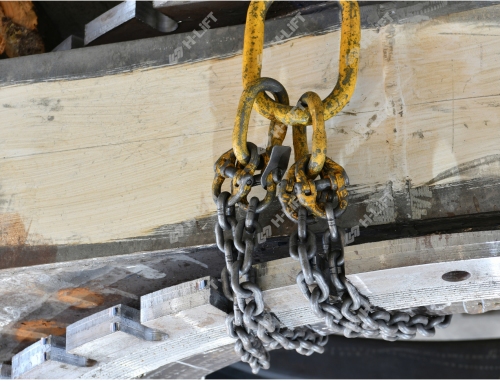

Grade 8 Chain Sling with Clevis Sling Hook & Omega Link

A Grade 8 alloy chain sling is a specialized lifting and rigging assembly made from high-strength alloy steel chain components. These chain slings are designed for heavy-duty lifting applications and are known for their durability and load-bearing capacity.

Lifting Points

Lifting points, also known as lifting or rigging points, are specialized hardware or attachments used in various industries to facilitate the safe and efficient lifting and rigging of heavy loads and equipment. These lifting points are designed to provide secure attachment points for lifting devices such as slings, chains, hooks, or other rigging hardware. They play a crucial role in ensuring the safety and stability of lifting operations.

Grade 10 Eye Grab Hook with Clevis Attachment

An "eye grab hook with clevis attachment" is a type of lifting and rigging hardware used in various applications, particularly in industries like construction, transportation, and material handling. This component is designed to securely attach and lift loads.

Grade 8 Eye Hook with Latch EN 1677

A Grade 8 eye hook with latch refers to a specific type of hardware or fastening device that is designed for heavy-duty lifting and rigging applications. The "Grade 8" designation indicates the level of strength and durability of the hook, with Grade 8 being one of the highest strength grades available for such equipment. Here are some key features and uses of a Grade 8 eye hook with latch:

Grade 8 Clevis Self Locking Hook EN 1677

Clevis self locking hooks are the most common style of bottom hook used on chain slings. The hook design ensure the hook will close when loaded and thus the load is captured in the hook and is not able to release should the load line become slack or into contact with another object.
G80 clevis self locking hook will not open when under load as the latch closes automatically.

Grade 8 Clevis Shortening Grab Hook with Wings

H-Lift Grade 8 Clevis Shortening Grab Hook with Wings

Grade 8 Clevis Shortening Grab Hooks with Wings are used to enable the adjustment of chain sling leg lengths.
No reduction of working load limit due to supporting cradle in saddle of hook.

Grade 8 Clevis Shortening Clutch

The grade 8 clevis shortening clutch is an essential part of chain slings, used to shorten the lengths of the chain legs and prevent instability of the load. The clutch compared to the shortening hook makes a straight pull possible.

Grade 8 clevis shortening clutch is designed to have the advantage of shortening the chain by just simpy putting it into work with the existing chain sling set. The clevis design allows easy connection to chain. Not recommended for use as a bottom lifting of sling for back hooking and reeving application.

Grade 8 Coupling Link or Hammerlock Chain Connector

Coupling links (also known as Hammerlocks) are used to attach hooks, chains, and other accessories onto the legs of a chain sling or to attach a master link to a chain sling.

A coupling link, also known as a coupler link or connector link, is a type of connecting link used primarily in lifting and rigging applications. It serves as a link or connector between various components of a lifting or rigging assembly, such as chains, wire ropes, slings, or hooks. Coupling links are designed to provide a secure and reliable connection while ensuring the safe handling of heavy loads.

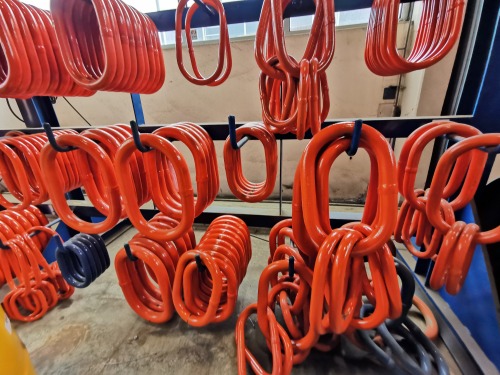

Grade 8 Master Link and Intermediate Master Link

Grade 8 master links and intermediate master links are components used in lifting and rigging applications, typically made from high-strength alloy steel. These components play a crucial role in creating strong and reliable connections within lifting assemblies, such as chain slings, wire rope slings, and other lifting configurations.

Grade 8 Chain Sling EN 818-4

Grade 80 chain sling is an assembly consisting of chain or chains joined to upper and lower terminals suitable according to the requirements of European Standardard EN 818-4 for attaching loads to the hook of a crane or other lifting machines.

Grade 8 Weld on Hook

This G80 weld-on hook is designed for attachment to mobile lifting equipment to provide a pick point for easy sling attachment and is very popular with excavators.

Grade 8 Clevis Self Locking Hook

H-Lift Grade 80 Clevis Self Locking Hook, CSK type features:
Clevis self locking hooks are the most common style of bottom hook used on chain slings. The hook design ensure the hook will close when loaded and thus the load is captured in the hook and is not able to release should the load line become slack or into contact with another object.
G80 clevis self locking hook will not open when under load as the latch closes automatically.

Grade 8 Web Sling Connector

H-Lift Grade 8 Web Sling Connector, WSC type features:
Designed with an extra wide body to connect webbing sling or round sling to grade 80 chain components.
Quenched & tempered.
100% Magnaflux Crack Detection.
Standard: EN 1677
Material: forged alloy steel
Proof load: 2.5 times the Working Load Limit
Safety factor: 4:1
Surface finish: powder coated.

Multi-leg Sling Assembly

A multi-leg sling assembly, often referred to as a multi-leg sling or multi-leg bridle, is a lifting sling configuration consisting of multiple individual sling legs connected to a single attachment point. This type of configuration is commonly used in lifting operations where the load's shape, weight distribution, or other factors require the use of multiple attachment points to ensure stability, even weight distribution, and safe lifting.

Chain Sling with Clevis Self Locking Hook

A chain sling is a flexible and durable lifting assembly made up of interconnected links of metal chain. It is used to lift, hoist, or move heavy loads in various industrial settings. Chain slings are available in different configurations, such as single-leg, double-leg, three-leg, and four-leg slings,depending on the lifting requirements.

A clevis self-locking hook is a specialized type of hook designed for secure and safe lifting operations. It has a clevis (a U-shaped connector) on one end, which allows it to be attached to the chain sling, and a latch mechanism on the other end that can be closed and locked to prevent the load from accidentally disengaging. The self-locking feature ensures that the hook remains securely attached to the load during lifting and movement.

Webbing Sling Connector

A webbing sling connector, also known as a sling hook or web sling hook, is a component used to connect a webbing sling to an anchor point or lifting device. It is specifically designed for use with webbing slings, which are flexible straps made of high-strength synthetic materials.

Grade 100 Alloy Chain Fittings

Grade 100 alloy chain fittings are high-strength, durable components designed to be used with Grade 100 alloy chains. Grade 100 is a higher strength class of alloy steel chain, offering even greater strength and durability compared to Grade 80 chains.

Grade 100 alloy chain fittings are typically manufactured from alloy steel with a minimum tensile strength of 1000 N/mm² or 100 kgf/mm². These fittings are specifically designed to match the strength and capabilities of Grade 100 chains, ensuring a safe and reliable connection.

Grade 80 Lifting Chain

Grade 80 lifting chain is a high-strength alloy steel chain commonly used in various lifting and rigging applications. It is designed to provide superior strength, durability, and resistance to wear and fatigue compared to lower grade chains.

Grade 80 refers to the minimum tensile strength of the chain, which is 800 N/mm² or 80 kgf/mm². This high-strength chain is capable of handling heavy loads and is often used in demanding lifting operations.

Alloy Steel Shank Hook

Shank hooks come with an unthreaded shank so each hook can be threaded by the user for the application.
Available in forged carbon steel and alloy steel.
“C” stands for carbon steel, Grade 43 high test forged steel for Grade 43 chain.
“A” stands for alloy steel, Grade 70 forged alloy steel for Grade 70 chain.
Drop forged, quenched & tempered.
Safety factor: 5:1
Powder coated finish or painted

Lifting Chain Sling

A lifting chain sling is a type of lifting equipment used for hoisting and securing heavy loads. It consists of a chain with various components such as hooks, links, and attachments that allow it to connect to the load and the lifting device.
