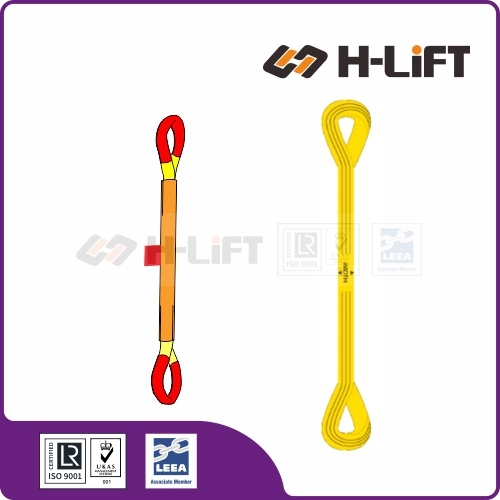

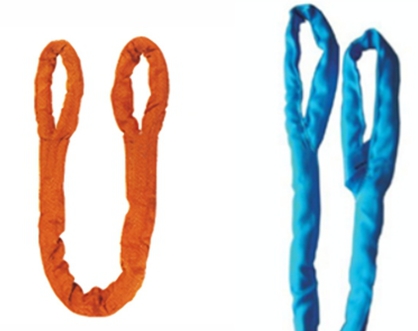

The Eye & Eye Round Sling is a highly versatile and robust textile lifting sling, distinguished by reinforced loops ("eyes") at each end and a flexible round body designed to protect delicate loads.
| Type | Ends | Best Feature | Recommended Application |
|---|---|---|---|
| Eye & Eye Round Sling Current Item |
Sewn Loops | Easy Hooking + Softness | Connecting heavy loads to crane hooks where surface protection is needed. |
| Endless Round Sling Standard |
Continuous Loop | Rotation of Wear | Choker hitches, ultra-heavy loads, general purpose rigging. |
| Flat Web Sling Standard |
Sewn Loops | Wide Surface Contact | Standard lifting where ultra-softness is not the priority. |
| Item No. | WLL / Capacity | Working Load Limit (tonnes) based on Hitch Type | Min Length (m) | Product Code | ||||
|---|---|---|---|---|---|---|---|---|
| Straight (M=1) | Choked (M=0.8) | Basket Hitch (Angle β) | ||||||
| - | - | 0-7° (M=2) | 7-45° (M=1.4) | 45-60° (M=1) | ||||
| RS02-010 | 1T (Violet) | 1 | 0.8 | 2 | 1.4 | 1 | 1.0 | 307101001 |
| RS02-020 | 2T (Green) | 2 | 1.6 | 4 | 2.8 | 2 | 1.5 | 307101002 |
| RS02-030 | 3T (Yellow) | 3 | 2.4 | 6 | 4.2 | 3 | 1.5 | 307101003 |
| RS02-040 | 4T (Grey) | 4 | 3.2 | 8 | 5.6 | 4 | 1.5 | 307101004 |
| RS02-050 | 5T (Red) | 5 | 4.0 | 10 | 7.0 | 5 | 1.5 | 307101005 |
| RS02-060 | 6T (Brown) | 6 | 4.8 | 12 | 8.4 | 6 | 2.0 | 307101006 |
| RS02-080 | 8T (Blue) | 8 | 6.4 | 16 | 11.2 | 8 | 3.0 | 307101008 |
| RS02-100 | 10T (Orange) | 10 | 8.0 | 20 | 14.0 | 10 | 3.0 | 307101010 |
| RS02-120 | 12T (Orange) | 12 | 9.6 | 24 | 16.8 | 12 | 3.0 | 307101012 |
H-Lift Round Slings, manufactured to EN 1492-2, provide a versatile, lightweight, and cost-effective solution for heavy lifting. This guide outlines the essential safety practices, product features, and maintenance requirements to ensure safe operations.
The soft polyester sleeve cushions the load, making round slings ideal for lifting fragile, polished, or easily marred surfaces where chain or wire rope might cause damage.
Made from high-tenacity polyester (PES) yarn continuously wound in an endless loop. They offer immense lifting capacity while being extremely lightweight and easy to handle.
Fully compliant with EN 1492-2 international standards. Each sling is color-coded by tonnage (e.g., Violet=1T, Green=2T) with capacity stripes for instant identification.
The endless loop construction allows for rotation of load-bearing points, extending the sling's service life by avoiding constant wear on a single spot.
Safety is paramount in lifting operations. Failure to follow these guidelines can result in sling failure, load damage, or injury.
Regular inspection is critical. A round sling must be removed from service immediately if any of the following are detected:
Note: Minor chafing on the outer cover surface is normal, but deep abrasion requires assessment by a competent person.
