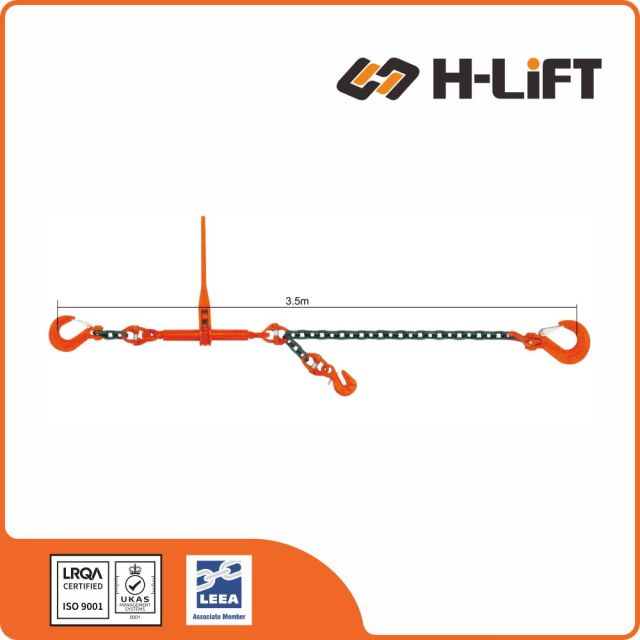

Grade 80 Lashing Chain with Ratchet Load Binder

Item No.: 4112
G80 lashing chain with ratchet type load binder, the lashing chains are equipped with a ratchet load binder, load hooks with safety latches, shortening grab hook with safety pin that prevents the chain from vibrating during transport.
Description Safe Use of Load Binder and Chain Lashing
Description

The G80 Lashing Chains with Ratchet Load Binder are designed for secure load management, particularly in heavy-duty transport applications. Here are the key specifications and features:

Specifications

  • Material: Constructed from Grade 80 forged steel, providing high strength and durability for heavy loads.
  • Chain Sizes and Capacities:
    • 8 mm Chain:
      • Lashing Capacity: 40kN (approximately 4 tons)
      • Minimum Breaking Load: 8,000 kg
    • 10 mm Chain:
      • Lashing Capacity: 63kN (approximately 6.3 tons)
      • Minimum Breaking Load: 12,600 kg
    • 13 mm Chain:
      • Lashing Capacity: 100kN (approximately 10 tons)
      • Minimum Breaking Load: 20,000 kg

Features

  • Ratchet Load Binder: The ratchet mechanism allows for precise tensioning, making it easier to secure loads tightly and safely. The binder features rust-resistant springs for enhanced longevity.
  • Clevis Hooks: The chains come equipped with clevis hooks, which provide a secure attachment point, ensuring stability during transport.
  • Compliance: These chains and binders comply with relevant safety standards, ensuring reliability in load securing operations.

Applications

G80 Lashing Chains with Ratchet Load Binders are commonly used in:

  • Transport and Logistics: Ideal for securing loads on flatbed trailers and during shipping.
  • Construction: Useful for securing heavy materials and equipment.
  • Towing and Recovery: Effective for safely dragging or towing vehicles and equipment.
  • The lashing chains are equipped with a ratchet load binder, load hooks with safety latches, shortening grab hook with safety pin that prevents the chain from vibrating during transport.
  • The ratchet load binder applies a force to the chains in a controlled manner.
  • Long side can be shortened safely by the shortening grab hook.
  • Standard working length is 3.5m
Overall, the G80 Lashing Chains with Ratchet Load Binder provide a robust and reliable solution for professionals needing to secure heavy loads effectively and safely during transport operations.



Item No. Chain Size Lashing Capacity MBF Product Code
mm kN kN
ELBC08 8 40 80.4 411201008
ELBC10 10 63 126 411201010
ELBC13 13 100 212 411201013

Safe Use of Load Binder and Chain Lashing
Grade 80 Lashing Chain with Hooks, Ratchet and Lever Load Binder

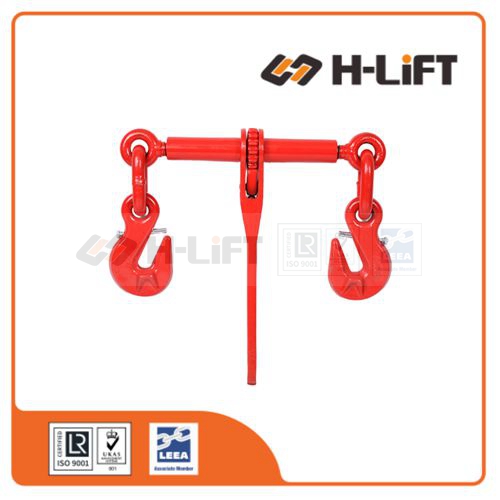

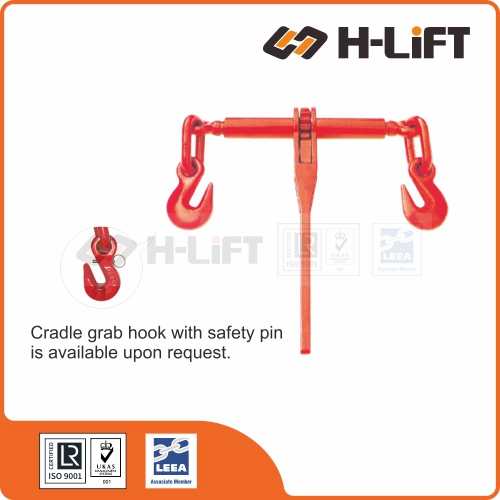

Ratchet type Load Binder

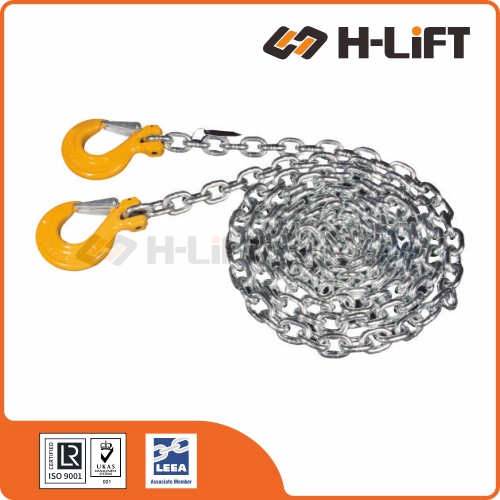

Grade 80 Lashing Chain with Clevis Hooks

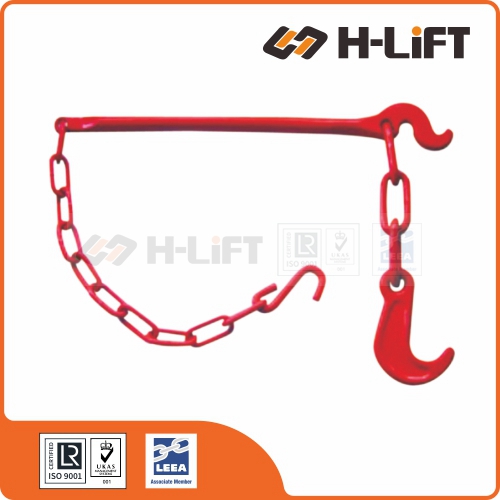

Lever type Load Binder

ALWAYS:
• Inspect chain lashings before use.
• Calculate the lashing force(s) required for the chosen method of load restraint.
• Select the capacity and number of chain lashings to provide at least the calculated lashing force(s)
• Ensure the lashing points on the vehicle and/or load are of adequate strength.
• Protect the chain lashing from small radii edges or reduce the lashing capacity in accordance with the manufacturer’s instructions.
• Ensure the chain lashings are correctly tensioned.
• Exercise care when releasing chain lashings in case the load has become unstable since the lashings were applied.



NEVER:
• Use chain lashings to lift a load.
• Knot, tie or modify chain lashings.
• Overload chain lashings.
• Use chain lashings over a sharp edge without edge protection or reducing the lashing capacity.
• Expose chain lashings to chemicals without consulting the supplier.
• Use chain lashings which have any distorted chain links, a damaged tensioner, damaged terminal fittings or a missing ID tag.



Selecting the Correct Chain Lashing
The standard for chain lashings is BS EN 12195-3: 2001. It requires the chain to conform to EN 818-2 and the connecting components to conform to EN 1677-1, 2 or 4 as appropriate. Connecting and shortening components must have a have a securing device such as a safety latch.
These standards are for grade 8 items. Some manufacturers also offer higher grades which, size for size, have a greater lashing capacity.
Chain lashings are available in a range of capacities and lengths and in various configurations. Some are general
purpose. Others are intended for specific applications.
Selection should start with an assessment of the forces acting on the load. The lashing force(s) required should be calculated in accordance with BS EN 12195-1: 2010.
Next check whether the lashing points on the vehicle and/or load are of adequate strength. If necessary apply a greater number of lashings to spread the force across more lashing points.
Chain lashings are marked with their lashing capacity (LC). expressed in daN (deca Newton = 10 Newtons) This is a force approximately equivalent to a weight of 1kg.



Using Chain Lashings Safely
Ensure that the tensioner is free to align and not bent over an edge. Ensure that the chain is not twisted or knotted and that the terminal fittings engage correctly with the lashing points.
For two part lashings, ensure the parts are compatible.
Ensure that the chain is protected from sharp and small radius edges by suitable packing or edge protectors.
Note: The manufacturer’s instructions may permit use over small radius edges provided the lashing capacity is reduced.



In-service Inspection and Storage
Chain lashings can be damaged by tensioning the chain across small radius edges without adequate edge protection. However damage may occur accidentally as a result of the load moving in transit hence the need to inspect before each use.
Chain lashings should not be exposed to chemicals, particularly acids which can cause hydrogen embrittlement. If accidental contamination occurs, the lashings should be cleaned with clear water and allowed to dry naturally. Weak chemical solutions will become increasingly stronger by evaporation.
Chain lashings should be inspected for obvious signs of damage before each use. Do not use the chain lashing if any of the following defects are found: illegible markings; bent, elongated or notched chain links, distorted or notched coupling components or end fittings, ineffective or missing safety latches.
Chain lashings will gradually wear over time. The LEEA recommends that they should be inspected by a competent
person at least every 6 months and a record made of the result.
Chain lashings should only be repaired by someone competent to do so.
For long term storage the storage area should be dry, clean and free of any contaminates.
